UNI-T UTi722M thermal camera for Android
Details

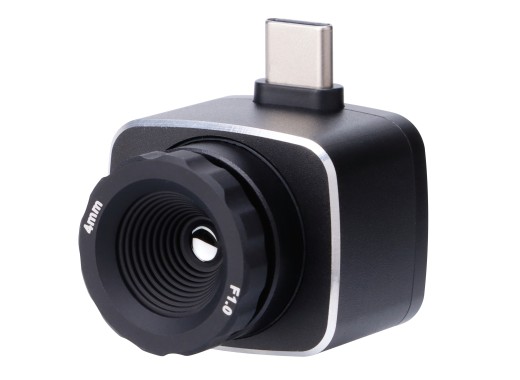

The UNI-T UTi722M is a smartphone thermal camera module that can be plugged into an Android smartphone in order to turn it into an advanced thermal imaging camera. The UTi722M has a 256 x 192 IR resolution which provides a very clear image with a fast response. Additionally, the thermal camera works in a wide temperature range of -20 to 450 degrees Celsius with an accuracy of ±2C° or ±2% and a NETD of ≤50mK. The UNi-T UTi722M has a 4mm manual focus lens which can be used to zoom in on specific areas. Moreover, this camera offers other important features such as: auto hot & cold spot tracking, buzzer & LED alarm, video recording and on-screen analysis with 3 points, lines & rectangles. It is also quite small as well as portable and very light with a weight of only 30g.
Specifications
| Temperature range | -20 to 450 °C |
| Accuracy | ±2 °C or ±2% (whichever is greater) °C |
| Focal length | 4 mm |
| IR resolution | 256 x 192 (49152 pixels) |
| NETD | ≤50mK |
| Frame rate | 25 Hz |
| FOV | 44.92° x 33.42° |
| Emissivity | 0.01 ~ 1.00 adjustable |
| Display | External |
| Colour palettes | Ironbow, White Hot, Black Hot, Red Hot, Lava, Rainbow, Rainbow HC |
| Connection | USB-C |
| Dimensions | 29.5 x 24.5 x 29.5 mm |
| Weight | 30 g |
Accessories
The UNI-T UTi722M thermal camera for Android comes with:
- Type-C male to female extension USB cable
- Storage bag
- Wrist strap
Pros and cons
- Video recording
- Built-in macro lens
- Not ideal for outdoor (>5m) use
Downloads
| UTi722M datasheet |  (4.28 MB) | Download |
| UTi722M user manual | (5.9 MB) | Download |
