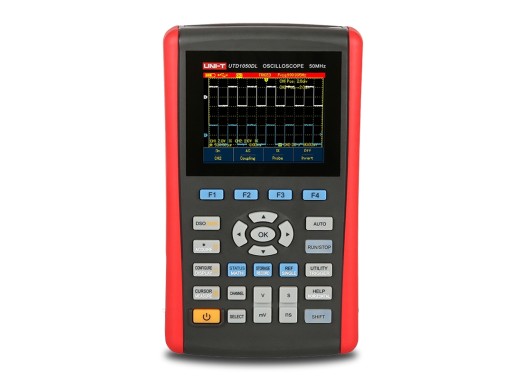

UNI-T UTD1050DL Multimeter/Oscilloscope two channels
Details
The UNI-T UTD1050DL is a handheld multimeter/oscilloscope which functions as a 4000-count multimeter, a 2-channel oscilloscope, and a recorder.
The oscilloscope has a 50 MHz bandwidth and a sample rate of 250 MS/s. In addition, the oscilloscope offers auto-ranging for both time and voltage axes, which means it will automatically select the best range for the measurement without input from the user.
The UTD1050DL includes a USB cable connecting the device to a computer. The supplied software allows the multimeter for multiple applications, such as data logging and Pass/Fail evaluation. The USB connector is isolated to prevent dangerous situations. Finally, with the 3600 mAh battery, it is possible to measure continuously for up to 6 hours. The battery can be recharged using the supplied adapter.
A similar multimeter/oscilloscope with a lower bandwidth is the UTD1025DL and can be found here.
Specifications
| Multimeter specifications | |||||||||||||||||
| |||||||||||||||||
| Oscilloscope specifications | |||||||||||||||||
| |||||||||||||||||
| Power supply | 7.4 V 3600 mAh battery, 6 hours of continuous battery operation | ||||||||||||||||
| True-RMS | Yes | ||||||||||||||||
| Data logging | Yes | ||||||||||||||||
| Display | 3.5" color TFT (320x240 pixels) | ||||||||||||||||
| Connectivity | Mini-USB | ||||||||||||||||
| Dimensions | 199 x 118 x 49 mm | ||||||||||||||||
| Weight | 0.9 kg | ||||||||||||||||
Accessories
The UTD1050DL comes with:
- Power adapter
- Power cord
- Test wires
- 2x probe (1x/10x)
- Voltage/current converter (40 mA, 400 mA)
- Voltage/current converter (4 A / 6 A)
- Bag
- USB cable
- Multimeter test lead (one red, one black)
Downloads
| UTD1000L Datasheet |
 (1.5 MB) |
Download |
| UTD1000L Series user manual |
(4.4 MB) |
Download |
