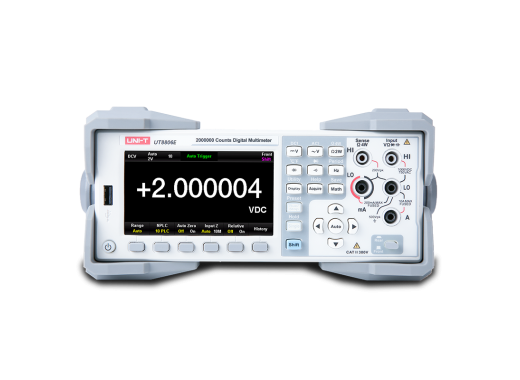

UNI-T UT8806E multimeter
Details
The UNI-T UT8806E is a 2.000.000 counts multimeter with 6.5 digits, auto range, a color display, and true RMS measurement functions that offer a high precision of 0.0035%. This multimeter is comparable in specs with the Siglent SDM4065A-SC only lacking in reading speed with 10.000 readings/s. However, this reading speed is sufficient for most applications.
Moreover, the UT8806E has plenty of storage with 1 GB (10.000 data records), which can be accessed via both USB and LAN. The multimeter comes with software with which you can record data and plot it into a graph. This software is also available on the UNI-T website. Finally, the multimeter also includes mathematical functions for easy data analysis such as min/max/mean, standard deviation, bar chart, histogram and more.
This multimeter is the more accurate version of the UNI-T UT8805E.
The default 3-year warranty can be extended to 5 years by registering your instrument.
Specifications
| Display resolution | 2.000.000 counts, 6 ½ digits |
| Max. AC voltage | 750 V |
| Max. DC voltage | 1000 V |
| Max. AC current | 10 A |
| Max. DC current | 10 A |
| Max. resistance | 1 GΩ |
| Max. capacitance | 100 mF |
| Frequency | 3 Hz - 1 MHz |
| Temperature | -270 - 1760 ℃ |
| Other functions | Diode, Continuity, Min/Max record, Average, Data hold, Bar chart, Histogram, Graphs, dB/dBm, Pass/Fail |
| True-RMS | Yes |
| Display | 4.3" TFT-LCD |
| Connectivity | USB Device, LAN, RS-232C |
| Dimensions | 215 x 88 x 390.2 mm |
| Weight | 3.4 kg |
Accessories
The UT8806E comes by default with:
- Power cord
- Test leads
- USB cable
- RS-232 cable
Pros and cons
- High precision
Downloads
| UT8806E datasheet |  (867.24 KB) | Download |
| UT8806E user manual | (3.23 MB) | Download |
