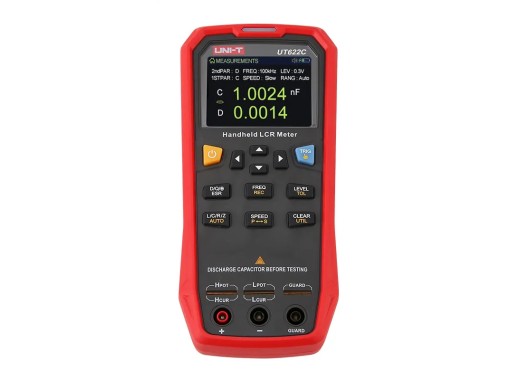

UNI-T UT622C handheld LCR meter
Details
The UNI-T UT622C is a handheld LCR meter with an accuracy of 0.1% and a very high measurement speed of 20 samples/second. Also, the meter has multiple test frequencies with a maximum test frequency of 100 kHz. Moreover, this LCR meter features a clear, intuitive, and colored 2.8-inch TFT LCD display which consists of 99999 counts. Furthermore, the UT622C has two power supply methods: a battery power supply and a USB power adapter power supply. Lastly, the UT622C has multiple measurement modes including a recording mode which can be used for data statistics and a tolerance mode which can be used for component sorting.
Model overview
| Model | UT622A | UT622C | UT622E |
|---|---|---|---|
| Max. test frequency | 10 kHz | 100 kHz | 100 kHz |
| DCR | No
| No
| Yes
|
| Price |
Specifications
| Testfrequencies | 100/120/1k/10k/100k Hz |
| Resistance range | 0.0000 Ω - 9.9999 MΩ |
| Capacitance range | 0.00 pF - 99.999 mF |
| Induction range | 0.00 uH - 99.999 H |
| Measurement parameters | Primary: L/C/R/Z Secondary: D/Q/Θ/ESR |
| Tolerance range | 1% - 20% |
| Display | 2.8' TFT LCD (99999 counts) |
| Power supply | 3.7 V lithium polymer battery |
| Max. measurement speed | 20 measurements/sec |
| Dimensions | 93 x 192 x 44 mm |
| Weight | 420 g |
Accessories
The UT622C is delivered including:
- Four-terminal kelvin test leads
- Short circuit board
- USB cable
Pros and cons
- Has a lithium polymer battery power supply and USB power adapter power supply
- High accuracy
- Cables need to be pushed firmly into the connectors
- PC software does not work well
Downloads
| UT622 Datasheet |  (2.69 MB) | Download |
| UT622 Series user manual | (17.83 MB) | Download |
