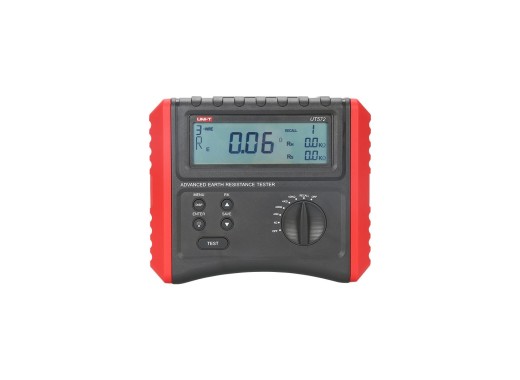

The UNI-T UT572 is an advanced earth resistance tester designed for accurate measurements of earth resistance and soil resistivity. It supports 2,3 and 4-wire measurements, making it suitable for various applications, including power equipment wiring and lightning protection systems.
The UT572 also features automatic interface connection checks and interference voltage/frequency detection, ensuring reliable and precise readings. It is also capable of measuring ground voltage and soil resistivity over distances ranging from 1 to 40 meters.
The UT572 can perform several types of tests:
- 2-Wire earth resistance measurement: This test is used to measure the resistance of the earth connection with two test leads.
- 3-Wire earth resistance measurement: This method provides more accurate results by using three test leads to eliminate the influence of the resistance of the test leads themselves.
- 4-Wire earth resistance measurement: This method further enhances accuracy by using four test leads, which is ideal for precise measurements in professional applications.
- Soil resistivity measurement: This test measures the resistivity of the soil, which is crucial for determining the suitability of the ground for installing grounding systems.
Specifications
| Range and accuracy |
| Earth resistance | 0 - 40 kΩ | ±(3% + 5) |
| Soil resistivity | 0 - 40 kΩ | ±(3% + 5) |
| Disturbance voltage | 50V (DC voltage / 40 Hz ~ 500 Hz) | ±(3% + 3) |
| Disturbance frequency | 40 Hz ~ 500 Hz | ±(1% + 2) |
|
| Other functions |
LCD Backlight, Data-hold (20 slots), Low battery indication, Interference voltage/frequency det ection |
| Display |
LCD, 125 x 37 mm |
| Power |
8 x 1.5V AA batteries |
| Dimensions |
210 x 175 x 90 mm |
| Weight |
1.1 kg |
Accessories
The UT572 comes with:
- 8 x AA batteries
- Simple test leads with alligator clips (double plugs x 1, single plug x 1)
- Grounding pin x 4
- Standard test leads with alligator clips (40m red x 1, 20m red x 1, 20m black x 1, 10m yellow x 1, 5m green x 1)
- Carrying bag
Pros and cons
- High earth resistance range
