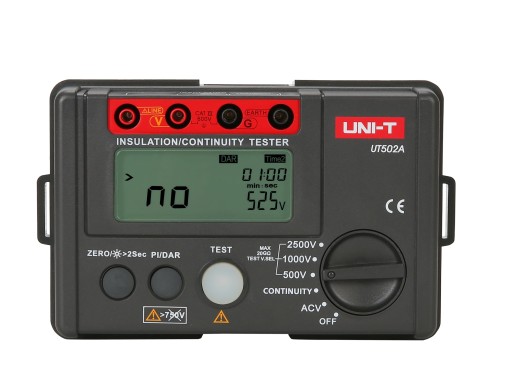

UNI-T UT502A insulation resistance tester
Details
This UNI-T UT502A insulation resistance tester measures whether the insulation of cables is sufficient. This prevents problems such as short circuits and ensures safety. With a maximum voltage measurement capability of 2500 V, it offers comprehensive coverage for insulation testing needs. The display of the UT502A offers an LCD backlight and shows up to 2000 counts. Moreover, the UT502A can measure insulation resistance, AC Voltage, low resistance, PI (Polarization Index) and DAR (Dielectric Absorption).
Specifications
| Display count | 2000 | ||||||||
| Insulation resistance (Ω) | |||||||||
|
|||||||||
| Maximum AC voltage | 750 V | ||||||||
| Auto Range | Yes |
||||||||
| Other functionalities | Backlight, Auto range, High voltage indication, Overload indication, Low battery indication, Auto discharge, 10 MΩ internal resistance test | ||||||||
| Power source | 6 x 1.5V battery | ||||||||
| Display dimensions | 70.6 x 34 mm | ||||||||
| Dimensions | 150 x 100 x 71 mm | ||||||||
| Weight | 500 g | ||||||||
Accessories
The UT502A will be delivered including:
- Test leads
- Alligator clips
- Batteries
- Test probes
- Carrying bag
Pros and cons
- Good price-quality ratio
- Only offers 2000 counts
Downloads
| UT500 series datasheet |  (888.2 KB) | Download |
| UT502A manual | (3.86 MB) | Download |
