1359 €1,359.00 Excl. VAT
Loading stock info
  •
Product number: ELE005003

Be the first to review this product

Details

Currently the UNI-T UT3562 in unavailable, as an alternative we recommend the Sourcetronic ST2523 and ST2523A with voltage ranges up to 65 and 350 V, respectively.

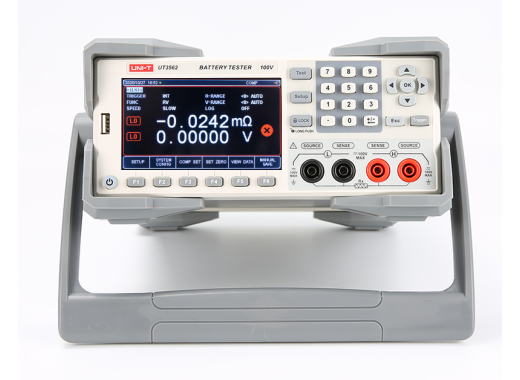

The UNI-T UT3562 battery tester is a perfect choice for an all-around battery tester. It can measure not only the usual battery voltage but also the internal resistance, battery modules, and other types of batteries such as button and lead-acid batteries. These measurements can be done at 4 different speeds: slow/medium/rapid/high-speed. Extra functions include sorting, comparing, and a beeper.

The tester also provides the user with the opportunity to manually select the measuring range for resistance and voltage. On top of that, the UT352 also has recording and data-saving capabilities to gather data more easily. This data can easily be exported for processing thanks to the multitude of connectivity options. These include USB, RS-232, Handler, SCPI, and the Modbus Protocol. The UT3562 also has a manual and automatic range function, which might be helpful for users that test a lot of batteries. It also comes with PC software.

Specifications

Voltage1 V - 100 V
Resistance1 mΩ - 3 KΩ
Resolution0.1 µΩ, 10 µV
AccuracyResistance: 0.5%
Voltage: 0.01%
ConnectivityUSB (Host/Device), RS-232, Handler, SCPI, Modbus Protocol
Display4.3" LCD, 31000 count (AC resistance) / 606000 count (DC voltage)
Dimensions340 x 214 x 89 mm
Weight2.6 kg

Accessories

The UNI-T UT3562 battery tester comes with:

  • 1 x Power cable
  • 1 x Kelvin test lead
  • 1 x Pen test lead
  • PC software

Pros and cons

  • Includes Modbus and SCPI protocols

Downloads
