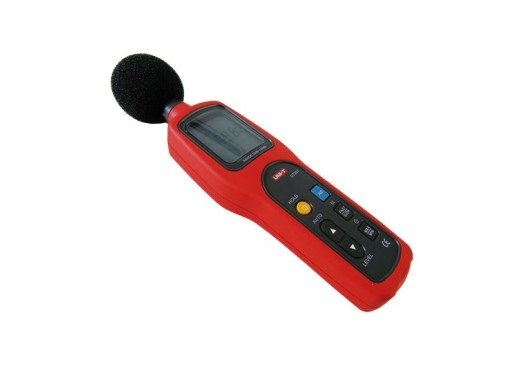

UNI-T UT352 sound level meter
Details
The UNI-T UT352 is a stable, safe and reliable sound level meter, applicable in various areas. The meter is easy to use due to functions such as backlight and data hold.
The meter has an analog bar graph to show rapid change and can measure with two sample rates (125 ms or 1 sec). Furthermore, the meter has an analog output to which, for example, a scope or data logger can be connected.
Specifications
| Range and precision | |||||||||||
|
|||||||||||
| Frequency range | 31.5 - 8000 Hz | ||||||||||
| Frequency weighting | A and C | ||||||||||
| Sample rate | Fast (125 ms), Slow (1 sec) | ||||||||||
| Analog output | |||||||||||
|
|||||||||||
| Other features | Display backlight, sleep mode, REL, Max-Min modus, data hold, datalogging (62 data sets), low battery display (4.8V) | ||||||||||
| Dimensions display | 53 x 41 mm | ||||||||||
| Power supply | 4 x 1.5V batteries (included) | ||||||||||
| Weight | 330 g | ||||||||||
| Dimensions | 273 x 70 x 39 mm | ||||||||||
For more information, please refer to the datasheet and manual at the bottom of this page.
Accessories
The UNI-T UT352 sound level meter comes with the following accessories:
- 4x 1.5V batteries
- Protective cover
- Windscreen
- Manual (English)
Downloads
| Uni-T UT352 datasheet ENG |
 (26.39 KB) |
Download |
| Uni-T UT352 Manual ENG |
(7.68 MB) |
Download |
