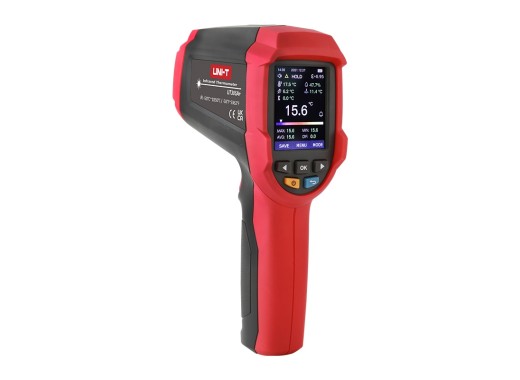

The UNI-T UT305A+ infrared thermometer is a high precision, high distance ratio, non-contact infrared thermometer. The thermometer is suitable for a high, -50°C - 1850°C, temperature range and specifically developed for high temperatures.
The thermometer can detect the thermal insulation performance of various types of equipment and is suitable for furnace kilns, heat transfer pipes, cold storage and many others.
The available laser measurement modes are: surface heat detection, surface dew point detection and surface temperature comparison. Moreover, it is possible to measure the direct environment, to perform a thermocouple probe measurement and to measure the relative humidity. The thermometer also comes with a trigger lock function.
Finally, it has a high-resolution TFT color 2.4" LCD, and is capable of storing and exporting 999 measurements.
Model overview
We offer multiple infrared thermometers in the UNI-T UT305 series, differing in their temperature range, data storage, humidity measurement and distance ratio:
| Model |
UT305A+ |
UT305C+ |
UT305S |
| Temperature measurement range |
50 °C - 1850 °C |
50 °C - 2200 °C |
50 °C - 2000 °C |
| Data storage |
999 groups |
999 groups |
99 groups |
| Humidity measurement range |
10% RH - 90% RH |
10% RH - 90% RH |
|
| Distance ratio |
55:1 |
55:1 |
50:1 |
| Price |
237
€237.00
Excl. VAT
|
285.1
€285.10
Excl. VAT
|
176
€176.00
Excl. VAT
|
Specifications
| Display resolution | 0.1 °C |
| Interface | USB-C |
| Battery | 3.7 V, 2600 mAH, 20 hours |
| Display | 2.4" TFT LCD 320x240 pixels |
| Dimensions | 205 x 65 x 124 mm |
| Weight | 375 g |
Accessories
The UT305A+ comes by default with:
- Thermocouple probe
- USB cable
Pros and cons
- High max temperature measurement
- High distance ratio
