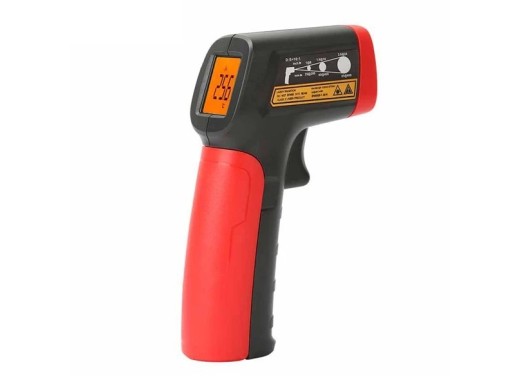

UNI-T UT300A+ infrared thermometer
Details
The UT300A+ infrared thermometer can measure the surface temperature in a temperature range of -20℃～400℃. By measuring the infrared energy radiated from the target energy, temperature measurements can be done without having to touch the surfaces.
Moreover, the measurements of the UT300A+ have a high accuracy over the entire spectrum.
The maximum Distance to Spot Size Ratio (D:S) of the thermometer is 10:1, which means that at a distance of 10 metres, the thermometer performs a measurement over a surface with a diameter of 1 metre.
Furthermore, the meter's display is equipped with backlight, so you can also read off the screen in the dark. Another feature of the thermometer is that it had power-off memory so it will display the last meaurement data that was held before the last shutdown.
Finally, the UT300A+ is a robust thermometer since it can be safely dropped from a height of 1 meter.
Specifications
| Temperature range | -20°C~400°C |
| Accuracy | 0°C: ±2.0°C or ±2% ≤0°C: ± (2.0°C + 0.1°C/°C) |
| D:S ratio | 10:1 |
| Repetition precision | 1° or 1.0% |
| Resolution | 0.1 °C |
| Response time | ≤500 ms |
| Features | One button operation, Single laser targeting, LCD backlight, Auto data hold Auto power off, Low battery indication, °C/°F selectable, Power-off memory |
| Display | Backlit LCD |
| Battery type | 1.5V battery (LR03) x 2 |
| Battery life | More than 20 hours |
| Dimensions | 135 mm x 94 mm x 36.5 mm |
| Weight | 146 g |
Downloads
| UNI-T UT300A+ manual |  (2.07 MB) | Download |
