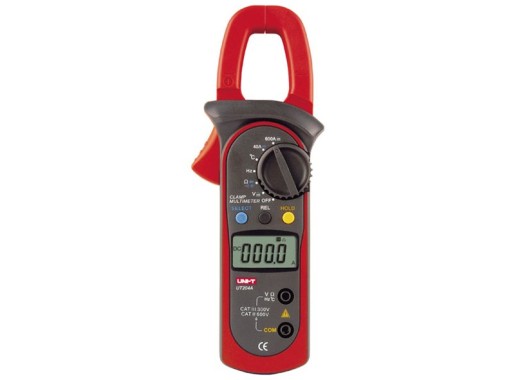

The UNI-T UT204A is an entry-level current clamp which is able to perform all basic functions like measuring voltage, current and resistance. Besides that it is also capable of measuring capacitance, frequency and temperature. The UT204A has a 4000 counts display and it can measure both DC and AC voltages and currents. The current clamp is rated with CAT II 600V and CAT III 300V.
Range and resolution | |||||||||||||||||
| |||||||||||||||||
Display count | 4000 counts | ||||||||||||||||
Remaining measurements | Diode tester, Continuity, NCV | ||||||||||||||||
Overload protection | Yes |
||||||||||||||||
Dimensions | 208 x 76 x 30 mm | ||||||||||||||||
Weight | 260g |
The UT204A comes bundled with:
UNI-T UT204A user manual |
(4 MB) | Download |
