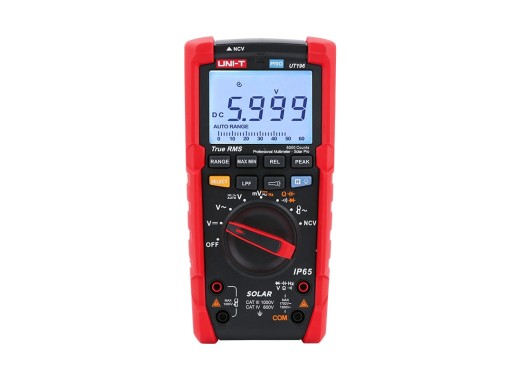

UNI-T UT196 solar multimeter
Details
This UNI-T UT196 solar multimeter is an ideal tool for solar power system maintenance. The UT196 can measure up to 1700V DC, 1500 V AC voltages and 3000 A AC current with an external current clamp sensor such as the UT-CS09D.
Furthermore, the multimeter is tested for safe usage in CAT III 1000V, CAT IV 600V environments.
Also, the UT196 is IP65 waterproof and has a built-in flashlight, an auto power-off function and a powerful back-light LCD display.
Lastly, this multimeter is very sturdy since it can be dropped from a 2 meter height.
Specifications
| Display resolution | 6000 counts |
| Max. AC voltage | 1500 V |
| Max. DC voltage | 1700 V |
| Max. Resistance | 60 MΩ |
| Max. Capacitance | 60 mF |
| Frequency | 1 MHz |
| Other functions | Diode, Continuity, Min/Max record, Peak/Data hold, Auto power-off, NCV, Flashlight, Low battery indication |
| Power supply | 9V battery |
| Dimensions | 195 x 95 x 58 mm |
| Weight | 485 g |
L'accesoires
The UT196 comes by default with:
- One pair of pointed probes
- 9V battery
- Manuel
- Carry bag
Pros and cons
- Ideal for solar panel measurements
- Safe up till CAT III 1000V / CAT IV 600V
Downloads
| UT196 flyer |  (11.42 MB) | Download |
| UT196 User Manual | (9.72 MB) | Download |
