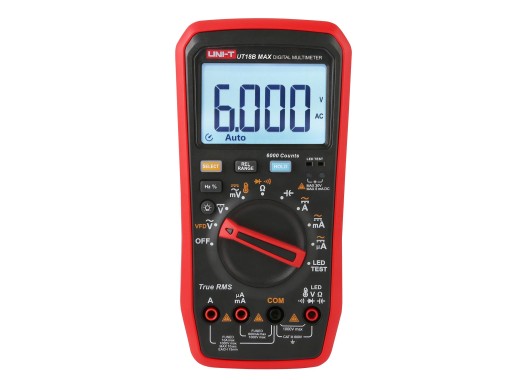

UNI-T UT18B Max multimeter
Details
The UNI-T UT18B Max is a True-RMS multimeter with many handy features for measurements. It can measure AC/DC voltages up to 1000V and current up to 10A. Since the meter is certified to meet CAT-III 600V standards, it is safe and reliable for residential and industrial applications. The included K-type thermocouple for measurement of temperatures from -55℃ to 500℃ makes this multimeter stand out compared to other multimeters at this price/feature set.
A unique feature of the UT18B Max is that it can perform variable frequency drive (VFD) measurement with a high interference rejection, as well as LED testing with automatic polarity detection. Furthermore, there are protection features, such as a mis-plug alarm, full-range input protection, and an indication for over-voltage/over-current.
Specifications
| Display resolution | 6000 counts |
| Max. AC voltage | 1000 V |
| Max. DC voltage | 1000 V |
| Max. AC current | 10 A |
| Max. DC current | 10 A |
| Max. resistance | 60 MΩ |
| Max. capacitance | 6000 mF |
| Frequency | 10 Hz - 10 MHz |
| Temperature | -55 - 500 ℃ |
| Duty cycle | 1 - 99.9 % |
| Other functions | Diode, continuity, variable-frequency drive measurement, LED polarity test |
| Power supply | 2x AA battery |
| True-RMS | Yes |
| Data logging | No |
| Dimensions | 182 x 91 x 45 mm |
| Weight | 452 g (including batteries) |
Accessories
The UT18B Max comes by default with:
- 2x AA battery
- 1x Standard gold-plated test leads
- 1x Fine-tipped gold-plated test leads
- 1x K-type thermocouple
Pros and cons
- Thermometer
- Mis-plug alarm
- LED test
- VFD measurement
Downloads
| UNI-T UT18B datasheet |  (10 MB) | Download |
| UNI-T UT18B user manual | (10.88 MB) | Download |
