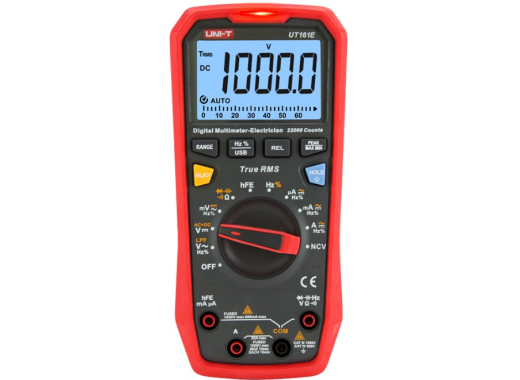

The UNI-T UT161E is a very affordable 22000 count True-RMS multimeter which can measure up to 1000 V AC/DC. It's the successor to the popular UT61E, which has been discontinued. This multimeter packs many features for its price range, including peak measurement, backlit display, NCV and USB connectivity. Like its predecessor, it comes with a fast updating bar graph as well. In addition to regular voltage/current/resistance/continuity modes, it measures hFE, capacity, frequency and duty ratios.
Specifications
| Range and accuracy |
| Specification |
Range |
Accuracy |
| Max. Voltage | 1000 V DC/AC | ± 0.05% +5 DC / ± 1.0% +10 AC |
| Max. Current | 20 A DC/AC | ± 0.5% +10 DC / ± 1.2% +10 AC |
| Max. Resistance | 220 MΩ | ± 0.5% +10 |
| Max. Capacity | 220mF | ± 3.0% +5 |
| Frequency | 0.01 Hz - 220 MHz | ± 0.01% +5 |
|
Other functions | Diode-/continuity test, transistor hFE, duty cycle, max/min/relative measurement, NCV
|
| Display |
22000 counts, with 46 segment bar graph (30Hz) |
| Connectivity |
USB |
| Category |
CAT III 1000V/CAT IV 600V |
| Dimensions |
186 x 89 x 49 mm |
| Weight |
400 g |
|
For more specifications please refer to the manual which you can download below.
Accessories
The UT161E comes with:
- 1.5V batteries
- Measuring probes
- Sockets
- USB cable
- Protective bag
Pros and cons
- 22000 count
- True-RMS
- Bar graph
- NCV
Downloads
(11.86 MB)
