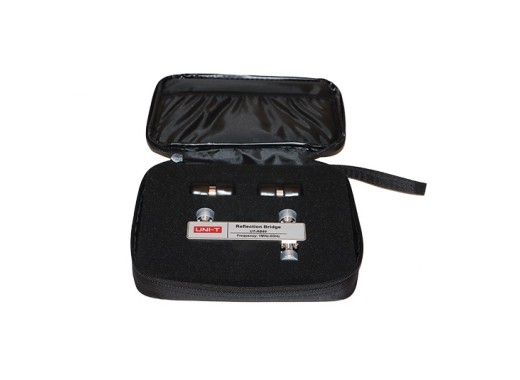

The UNI-T UT-RB60 VSWR bridge is a measurement accessory with a bandwidth of 1MHz to 6GHz that allows it to cover all major communication bands.
When combined with the spectrum analyser, the setup enables comprehensive evaluation of key antenna parameters, including VSWR (Voltage Standing Wave Ratio), resonant frequency, operational bandwidth, return loss, and reflection coefficient.
It can be used with any UNI-T UTS3000T+ series spectrum analyser.
The UT-RB60 features a compact, robust, and portable design, allowing for lab and field use.
Specifications
| Bandwidth | 1 MHz - 6 GHz |
| Impedance | 50 Ω |
| Insertion loss | ≤ 4.5 dB typ. |
| Connectors | N-female |
| Dimension | 112 x 61 x 22 mm |
| Weight | 150 g |
