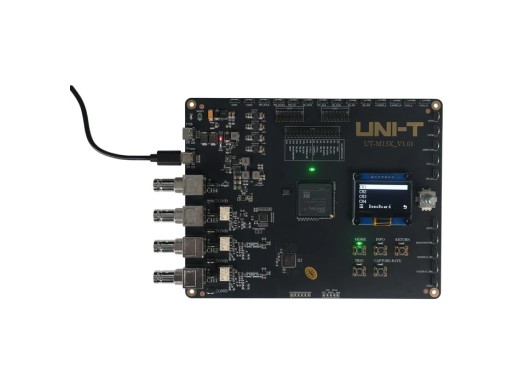

UNI-T UT-M13X demo board
Details
The UNI-T UT-M13X is an oscilloscope demo board for demonstrating and learning the basic functions of an oscilloscope. The board is powered over USB-C and will generate up to 40 different test signals, giving students and engineers a known, structured source to practise waveform display, triggering and measurement on.
Because the signal source is fixed and predictable, it removes any doubt about whether an unexpected reading comes from the probe, the source or the scope settings. This makes it an ideal teaching tool for labs, classrooms and field demonstrations. The compact board connects directly to the oscilloscope inputs and works with any UNI-T oscilloscope, as well as scopes from other brands.
Specifications
| Function | Oscilloscope demo / training board |
| Output signals | Up to 40 signal types |
| Power | USB-C 5 V |
Downloads
| UT-M13X user manual |  (7.24 MB) | Download |
