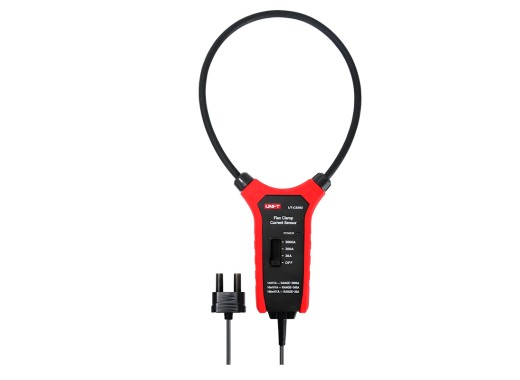

The UNI-T UT-CS09D is a flexible universal current clamp sensor. The current clamp sensor can safely and reliably measure currents up to 3000A . Additionally, the current clamp can be switched between 4 settings namely, setting 30A which measures between 1.5A and 30A, setting 300A from 30A to 300A, setting 3000A from 300A to 3000A and OFF. Furthermore, this current clamp sensor can be connected to any multimeter.
Specifications
| Measurement range |
| AC current | 30 A / 0.1 A / -100 mV / 1 A |
| AC current | 300 A / 1 A / -10 mV / 1 A |
| AC current | 3000 A / 10 A / -1 mV / 1 A |
|
| Measurement category |
CAT IV 600 V |
| Other functions |
Low battery indication, battery status indicator, out of range warning |
| Power |
3 x AAA 1.5 V batteries |
| Clamp size |
45.7 cm |
| Weight |
260 g |
| Dimensions |
267 mm x 119.4 mm x 34 mm |
Accessories
The UNI-T UT-CS09D comes with:
