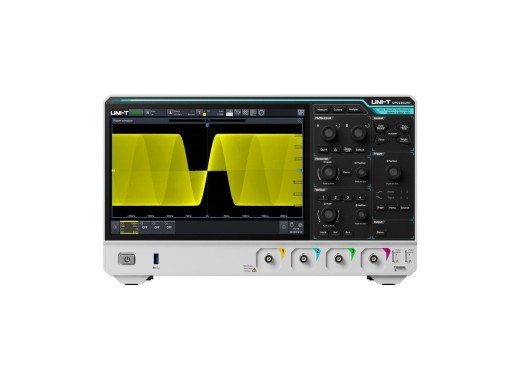

UNI-T UPO2204HD oscilloscope
Details
The UNI-T UPO2204HD is a 4-channel oscilloscope and the 200MHz model in the UPO2000HD series. A key advantage of the UPO2000HD is its high 100Mpts memory depth per channel, allowing the capture of long signal sequences with high precision. The oscilloscope also supports a sample rate of 2GS/s and, by default, includes decoding and analysis for 9 commonly used serial protocols. The 10.1" touchscreen display (1280×800) enables a clear view of multiple waveforms simultaneously, while a waveform capture rate of 250,000wfms/s ensures fast and accurate signal updates.
Each oscilloscope in the UPO2000HD series is designed for in-depth signal analysis and long data storage, thanks to its large frame memory. This series oscilloscope features a 4Mpts FFT spectrum analyser, as well as a protocol and power analyser. Connectivity options include USB host/device, LAN, Pass/Fail, and trigger out. Finally, the built-in web server enables remote operation and monitoring directly through a standard web browser.
The default 3-year warranty can be extended to 5 years by registering your instrument.
Model overview
| UPO2102HD | UPO2104HD | UPO2202HD | UPO2204HD | |
|---|---|---|---|---|
| Bandwidth | 100 MHz | 100 MHz | 200 MHz | 200 MHz |
| Channels | 2 | 4 | 2 | 4 |
| Rise time | 3.5 ns | 3.5 ns | 1.8 ns | 1.8 ns |
| Price |
Specifications
| Memory depth | 100 Mpts (per channel) |
| Sample rate | 2 GS/s (divided by number of active channels) |
| Waveform capture rate | 250,000 wfm/s |
| Vertical resolution | 12 bits |
| Vertical scale | 500 µV/div - 10 V/div |
| Horizontal scale | 2 ns/div - 1000 s/div |
| Interfaces | USB Host, USB Device, LAN, Pass/Fail, Trigger Out |
| Decoding | I2C, SPI, UART/RS232, CAN, LIN, CAN FD, FlexRay, SENT, Audio |
| Display | 10.1" TFT LCD touchscreen(1280 x 800) |
| Dimensions | 361 x 209 x 106 mm |
| Weight | 2.92 kg |
Accessories
The UNI-T UPO2204HD comes with the following accessories:
- 4x 200MHz UT-P05 passive probe
- 1x Power cord
- 1x USB cable
Pros and cons
- 100MPts per channel
- Strong FFT, 4MPts
- 9 protocols available
- No option for digital channels
Downloads
| UPO2000HD series datasheet |  (2.88 MB) | Download |
| UPO2000HD series quickstart guide | (1.38 MB) | Download |
| UPO2000HD series user manual | (14.32 MB) | Download |
