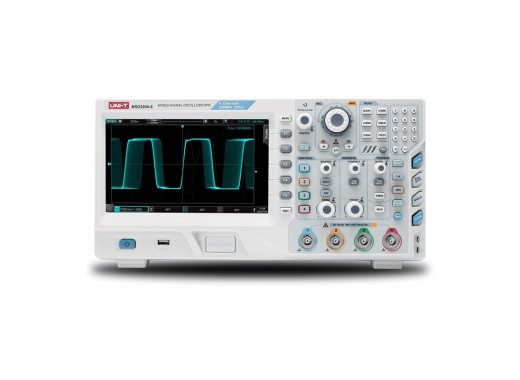

UNI-T UPO2202 oscilloscope
Details
The UNI-T UPO2202 is a multi-function digital phosphorus oscilloscope, with 2 channels, a bandwidth of 200 MHz and a maximum sample rate of 2 GSa/s in the analog channel. It presents three-dimensional waveform data of amplitude, time and signal intensity. This data can then be manipulated by the touchscreen, allowing a variety of gesture operations such as click, slide, zoom, edit and drag.
With a maximum waveform capture rate of 1.000.000 wfm/s and with a maximum memory depth of 56 Mpts per channel, this oscilloscope is considered fast and highly accurate in capturing abnormal waveforms.
This product has a 4 Mpts FFT (allowing measurement of the frequency domain spectrum of the incoming signals), supporting frequency settings, waterfall diagrams, area triggers, detection settings and mark measurements. The multiscopes technology allows for a split screen waveform display.
The oscilloscope has a built-in webserver, with which the oscilloscope can be accessed and remotely controlled via internet, through both PC and mobile phone interfaces.
The default 3-year warranty can be extended to 5 years by registering your instrument.
Model overview
The UNI-T UPO2xxx and MSO2xxx-S series differ in the analog bandwidth, channels, rise time and the inclusion of a logic analyser.
| Model | Bandwidth | Channels | Rise time | Logic Analyser | Price |
|---|---|---|---|---|---|
| UPO2102 | 100 MHz | 2 | < 3.5 ns | No |
|
| UPO2202 | 200 MHz | 2 | < 1.8 ns | No |
|
| UPO2104 | 100 MHz | 4 | < 3.5 ns | No |
|
| UPO2204 | 200 MHz | 4 | < 1.8 ns | No |
|
| MSO2104-S | 100 MHz | 4 | < 3.5 ns | Yes |
|
| MSO2204-S | 200 MHz | 4 | < 1.8 ns | Yes |
Specifications
| Memory depth | max. 56 Mpts (divided by number of active channels) |
| Sample rate | max. 2 GS/s |
| Waveform capture rate | 200.000 wfm/s (1.000.000 wfm/s in Fast Acquire mode) |
| Vertical resolution | 8 bits |
| Vertical scale | 500 µV/div - 20 V/div |
| Interfaces | USB Host/Device, LAN, EXT Trigger, Aux Out (Pass/Fail, Trigger Out), VGA, signal source output interface (MSO-2xxx-S only) |
| Decoding options | RS232, I2C, SPI, CAN, CAN-FD, LIN, FlexRay |
| Display | 8" TFT LCD (800x480) |
| Dimensions | 370 x 185 x 115 mm |
| Weight | 4.5 kg |
Accessories
The UPO2202 oscilloscope comes with:- USB cable
- Power cord
- Passive probe 200 MHz UT-P05
Pros and cons
- Multi Scope touchscreen allows for split screen
- Built-in webserver
- No function generator
- No logic analyser
- The fan generates a fair amount of audible noise when turned on
- The unit generates a high pitch whine when plugged in, even when not turned on
