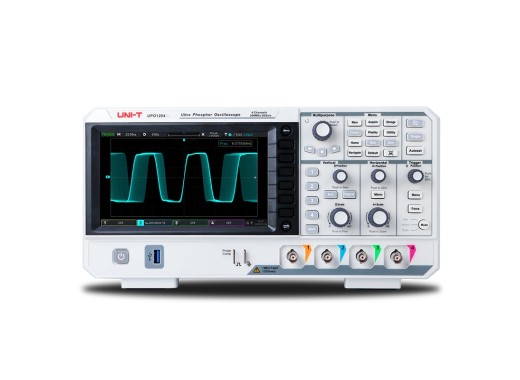

UNI-T UPO1054 oscilloscope
Details
The UNI-T UPO1054 is a multi-function digital phosphorus oscilloscope, with 4 channels, a bandwidth of 50 MHz and a maximum sample rate of 2 GSa/s in the analog channels. It presents three-dimensional waveform data of amplitude, time and signal intensity. This data can then be manipulated by the touchscreen, allowing a variety of gesture operations such as click, slide, zoom, edit and drag.
With a maximum waveform capture rate of 500.000 wfm/s and with a maximum memory depth of 56 Mpts, this oscilloscope is considered fast and highly accurate in capturing abnormal waveforms.
This product has a 1 Mpts FFT (allowing measurement of the frequency domain spectrum of the incoming signals), supporting frequency settings, waterfall diagrams, area triggers, detection settings and mark measurements. The multiscopes technology allows for a split screen waveform display.
The oscilloscope has a built-in webserver, with which the oscilloscope can be accessed and remotely controlled via internet, through both PC and mobile phone interfaces.
The default 3-year warranty can be extended to 4 years by registering your instrument.
Specifications
| Bandwidth | 50 MHz |
| Channels | 4 |
| Memory depth | max. 56 Mpts (divided by number of active channels) |
| Sample rate | max. 2 GS/s (divided by number of active channels) |
| Waveform capture rate | 150.000 wfm/s (500.000 wfm/s in Fast Acquire mode) |
| Vertical resolution | 8 bits |
| Vertical scale | 500 µV/div - 20 V/div |
| Interfaces | USB Host/Device, LAN, EXT Trigger, Aux Out (Pass/Fail, Trigger Out), VGA |
| Decoding options | RS232, I2C, SPI, UART |
| Display | 7" TFT LCD (800x480) |
| Dimensions | 326 x 170 x 110 mm |
| Weight | 2.45 kg |
Accessories
The UPO1054 oscilloscope comes with:- USB cable
- Power cord
- Passive probe 50 MHz UT-P03
