UNI-T MSO5034HD oscilloscope
Details

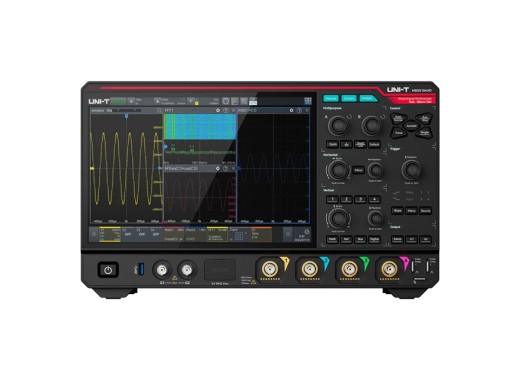

Note: The pictures show the MHO5104, however the models are visually comparable.
The UNI-T MSO5034HD is a 12-bit high-end oscilloscope part of the MSO5000HD series. This model features 4 analog, and 16 digital channels with a bandwidth of 350MHz. The MSO5034HD oscilloscope achieves a high waveform capture rate, which is significantly higher than similarly priced competing products, making it a capable product at a competitive price. This series stands out for its high specs, such as the 5GSa/s sample rate and 500MPts memory depth, making devices from this series suitable for demanding measurement tasks.
The MSO5034HD can be further upgraded through several options, which can add up to nine integrated instruments. Please contact us here for more information. The series oscilloscopes come with a digital oscilloscope, spectrum analyser, digital voltmeter, frequency meter, and protocol analyser. Additionally, the device features a built-in web server, allowing remote control via a web browser. Finally, the device features a 10.1" touchscreen LCD with intuitive gesture controls optimised to simplify operations.
The default 3-year warranty can be extended to 5 years by registering your instrument.
Model overview
| Model | MSO5034HD | MSO5054HD | MSO5104HD |
|---|---|---|---|
| Bandwidth | 350 MHz | 500 MHz | 1 GHz |
| Rise time | ≤ 1.00 ns | ≤ 0.70 ns | ≤ 0.35 ns |
| Price |
Specifications
| Channels | 4 |
| Memory depth | 500 Mpts (divided by number of active channels) |
| Sample rate | 5 GS/s (divided by number of active channels) |
| Waveform capture rate | 1,500,000 wfm/s |
| Vertical resolution | 12 bits 16 bits with ERES |
| Vertical scale | 500 µV/div - 10 V/div |
| Horizontal scale | 500 ps/div - 1 ks/div |
| Interfaces | USB host/device, LAN, EXT Trig, AUX out (Trig out, Pass/Fail, DVM), Gen out, HDMI, WiFi |
| Decoding | RS-232/422/485/UART, I2C, SPI |
| Display | 10.1" multi-touch capacitive screen (1280x800) |
| Dimensions | 361 x 209 x 106 mm |
| Weight | 3.97 kg |
Options:
- 350MHz Upgrade to 1 GHz Bandwidth – MSO5000HD-BW3M5T1G
- 350MHz Upgrade to 500MHz Bandwidth – MSO5000HD-BW3M5T5M
- All serial bus triggering and decoding options – MSO5000HD-BND
- Automobile serial bus triggering and decoding (CAN-FD, FlexRay, SENT) – MSO5000HD-AUTO
- Automotive serial bus triggering and decoding – MSO5000HD-CANFD
- Automotive serial bus triggering and decoding – MSO5000HD-FLEX
- Automotive sensor serial bus triggering and decoding – MSO5000HD-SENT
- Audio serial bus triggering and decoding – MSO5000HD-AUDIO
- Aerospace serial bus triggering and decoding – MSO5000HD-MIL1553
- Aerospace serial bus triggering and decoding – MSO5000HD-ARINC429
- Wireless communication serial bus triggering and decoding – MSO5000HD-MANCH
- Triggering and decoding – MSO5000HD-1WIRE
- Triggering and decoding – MSO5000HD-I3C
- Triggering and decoding – MSO5000HD-CANXL
- Dual channel function/arbitrary waveform generator (includes Bode Plot) – MSO5000HD-AWG
- Power analysis – MSO5000HD-PWR
- Time sequence analyser – MSO5000HD-TIME
Please contact us for more ordering information or if you have any other questions.
Accessories
- USB cable
- Power cord
- BNC-BNC direct-through line
- BNC-red and black alligator connecting wire
- 4x UT-P07A passive probe
Pros and cons
- Waveform capture rate of 1,500,000wfm/s
Downloads
| MSO5000HD user manual |  (17.48 MB) | Download |
| MSO5000HD datasheet | (3.55 MB) | Download |
