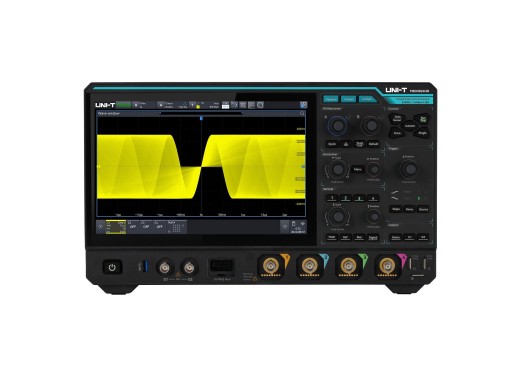

UNI-T MSO3024HD oscilloscope
Details
The UNI-T MSO3024HD is a 12-bit high-end oscilloscope part of the MSO3000HD series. The vertical resolution can be enhanced with the ERES (Enhanced Resolution) feature, up to 16 bits. It features 4 analog and 16 digital channels with a bandwidth of 200MHz. The MSO3024HD oscilloscope achieves a high waveform capture rate of up to 500,000 wfm/s (sequence mode: 1,500,000 wfm/s), which is significantly higher than similar competing products at a competitive price; however, it has a lower sample rate compared to similar products.
The MSO3024HD can be further upgraded through options, which include up to nine integrated instruments. It comes default with a digital oscilloscope, spectrum analyser, digital voltmeter, frequency meter, and protocol analyser. Additionally, the device features a built-in web server, allowing remote control access through a browser. Finally, the device features a 10.1" touchscreen LCD with intuitive gesture controls designed to simplify operations.
The default 3-year warranty can be extended to 5 years by registering your instrument.
Model overview
| Model | MSO3024HD | MSO3034HD | MSO3054HD |
|---|---|---|---|
| Bandwidth | 200 MHz | 350 MHz | 500 MHz |
| Rise time | ≤ 1.8 ns | ≤ 1.0 ns | ≤ 0.8 ns |
| Price |
Specifications
| Channels | 4 |
| Memory depth | 500 Mpts (divided by number of active channels) |
| Sample rate | Analog: 2.5 GS/s (divided by number of active channels)
Digital: 1.25 GS/s (divided by number of active channels) |
| Waveform capture rate | 500,000 wfm/s (sequence mode: 1,500,000 wfm/s) |
| Vertical resolution | 12 bits 16 bits with ERES |
| Vertical scale | 500 µV/div - 10 V/div |
| Horizontal scale | 500 ps/div - 1 ks/div |
| Interfaces | USB host/device, LAN, EXT Trig, AUX out (Trig out, Pass/Fail, DVM), Gen out, HDMI, WiFi |
| Decoding | RS-232/422/485/UART, I2C, SPI |
| Display | 10.1" multi-touch capacitive screen (1280x800) |
| Dimensions | 364 x 209 x 106 mm |
| Weight | 3.83 kg |
Options
| All serial bus trigger and decode options (software) | MSO3000HD-BND | |
| Power analysis option (software) | MSO3000HD-PWR | |
| Automotive serial bus trigger and decode option (software) | MSO3000HD-AUTO | |
| CAN trigger and analysis option (software) | MSO3000HD-CAN | |
| CAN-FD trigger and analysis option (software) | MSO3000HD-CANFD | |
| LIN trigger and analysis option (software) | MSO3000HD-LIN | |
| FlexRay trigger and analysis option (software) | MSO3000HD-FLEX | |
| SENT trigger and analysis option (software) | MSO3000HD-SENT | |
| Audio serial bus trigger and analysis option (software) | MSO3000HD-AUDIO | |
| MIL-STD-1553 trigger and analysis option (software) | MSO3000HD-MIL1553 | |
| ARINC429 trigger and analysis option (software) | MSO3000HD-ARINC429 | |
| Manchester trigger and analysis option (software) | MSO3000HD-MANCH | |
| Function generator option (software) | MSO3000HD-AWG | |
| 16 channel logic analyser (hardware) | UT-M15 |
Accessories
- USB cable
- Power cord
- BNC-BNC direct-through line
- BNC-red and black alligator connecting wire
- 4x UT-P05 passive probe
Pros and cons
- High waveform capture rate
- Competitive price
Downloads
| MSO3000HD series data sheet |  (2.92 MB) | Download |
| MSO3000HD series user manual | (14.64 MB) | Download |
