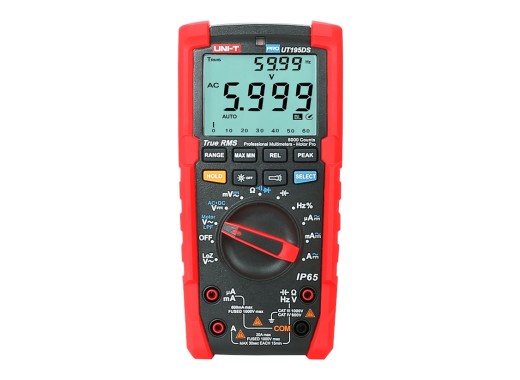

UNI-T UT195DS multimeter
Details
The UNI-T UT195DS is a robust true RMS multimeter which is 2m drop-proof and has an IP65 rating, which makes this device perfect for operation in harsh environments. The multimeter can measure a voltage of up to 1000V (AC/DC) and a current of up to 20 A (AC/DC) the range can be set manually or automatically, and the 31-point analogue bar indicates this range. Furthermore, the device can measure resistance (60MΩ), capacitance (60mF) and frequencies (10MHz). Finally, the large 6000-count LCD with auto backlight controlled by a light sensor, ensures your measurements are easy to read and the additional features like diode, continuity test, min/max relative readings and data hold all enable a smooth operation of this multimeter.
Compared to the similar UT195E this multimeter has higher sampling rates, both for measurements and bar graphs. Furthermore, this meter has a 3-phase motor sequence test, a 1kHz low pass filter, and a peak hold function.
Model overview
The UT195E, UT195M, and UT195DS differ from each other in the following ways:| Model | UT195E | UT195M | UT195DS |
|---|---|---|---|
| AC + DC | No |
No |
Yes, 600 V |
| Temperature | No |
Yes, -40 °C - 1000 °C |
No |
| Frequency range | 60 Hz - 10 MHz | 60 Hz - 40 MHz | 60 Hz - 40 MHz |
| Display interface | Single | Single | Dual |
| Sampling rate | 3 times / s | 3 times / s | 5 times / s |
| Analog Bar | Yes, 10 measurements / s |
No |
Yes, 20 measurements / s |
| AC voltage/current frequency response | 45 - 400 Hz | 45 - 1 kHz | 45- 5 kHz |
| 3-phase motor sequence test | No |
Yes, 600V |
Yes, 600V |
| Low pass filter | No |
No |
Yes, 1kHz 3dB attenuation |
| Peak hold | No |
No |
Yes, 250μs |
| Price |
Specifications
| Max. voltage | 1000 V (DC / AC) |
| Max. current | 20 A (DC / AC) |
| Max. resistance | 60 MΩ |
| Max. capacitance | 60 mF |
| Frequency | 60 Hz - 10 MHz |
| Other functions | Diode, continuity, loZ-voltage test, data hold, max/min, auto power-off, 3-phase motor analysis |
| Power supply | 9V battery |
| True-RMS | Yes |
| Display | 6000 count, 3⅚ digit, 3.2" TFT-LCD |
| Dimensions | 195 x 95 x 58 mm |
| Weight | 437 g |
Accessories
The UNI-T UT195DS multimeter comes with the following accessories:
- Test leads
- Lithium battery
Pros and cons
- Suitable for harsh environments
- 20 A range
Downloads
| UNI-T UT195 seris datasheet |  (549.04 KB) | Download |
| UNI-T UT195 E/M/DS manual | (10.19 MB) | Download |
