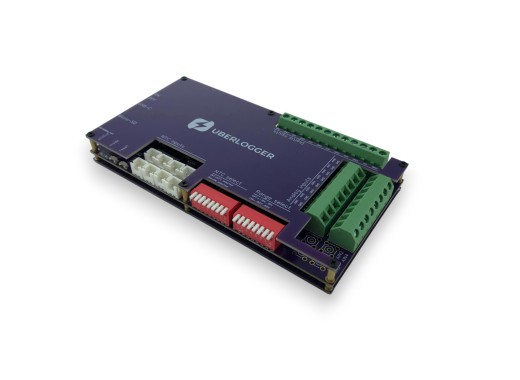

Uberlogger UL01
Details
The Uberlogger from Tecnion Technologies is a datalogger that lets you record up to 8 analog and 6 digital inputs at the same time. The analog channels can also be set up for NTC measurements. With a log frequency of up to 250Hz and resolutions of 12 or 16 bits, accurate measurements can be made. While the Uberlogger can log all the files on an SD card in CSV format of up to 32GB, it is also able to log and be controlled over Wi-Fi. The Uberlogger can also be remotely controlled by the REST API. With the 32GB SD card and low power usage settings, you can log data for days, logging slow-varying signals. Controlling the Uberlogger is easily done by the two buttons, one to start/ stop logging and one to reset. There are additional methods to control the logger, with an external trigger, and external control. When the signal is high, the external trigger ensures data logging, and using the on-off switch and web control is still possible whilst using the external trigger. The external control function allows the logger to be entirely controlled via digital inputs; this means that the on/off switch and web control are disabled. There are also two LEDs, a green one to indicate the log status and a red one to indicate an error. There are also 2 sets of dip switches to configure the analog inputs and the range of the inputs.
For more information, see the updated datasheet here.
The Uberlogger software is now open source. Want to see the software in action? Try the live online demo to explore the Uberlogger's capabilities before you buy. You can find more information at this page.
Specifications
| USB supply voltage | 5 V |
| USB supply current | Max 300 mA |
| Interface | Wi-Fi, SD card |
| Log frequency | once per, 10 minutes, 5 minutes, 1 minute, 10 seconds, 1 Hz, 2 Hz, 5 Hz, 10 Hz, 25 Hz, 50 Hz, 100 Hz, 250 Hz |
| Analog inputs | 8 |
| Analog input voltage | -10 V / +10 V -60 V / +60 V |
| ADC Resolution | up to 16 Bit |
| NTC type | 10 KΩ |
| Digital inputs | 6 |
| Digital input voltage | -60 V / +60 V |
| Dimensions | 145 x 77 x 23 mm LxWxH |
Accessories
The Uberlogger comes by default with:
- 8x NTC sensor
- USB-C cable
- SD card
Pros and cons
- Simultaneous logging of analog and digital
- Up to 16-bit ADC resolution
- Max 60V on the inputs
Downloads
| Uberlogger user manual |  (926.43 KB) | Download |
| Uberlogger datasheet | (276.24 KB) | Download |
