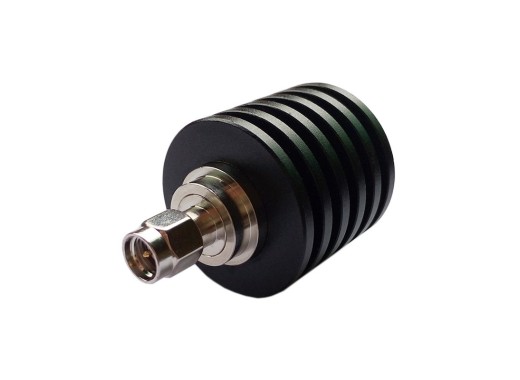

Attenuator SMA-male to SMA-female with heat sink 10dB 10W
Details
The 10 dB attenuator with heatsink is equipped with SMA-male to SMA-female connectors and works in both directions. It is used as an accessory for spectrum analysers.
See also the 20dB and 40dB versions of this attenuator.
Specifications
| Power | 10 W |
| Attenuation | 10 dB |
| Frequency range | 6 GHz |
| VSWR | ≤ 1.30 |
| Impedance | 50 Ω |
| Connectors | Input: SMA-male Output: SMA-female |
| Dimensions | 48 x 17 mm |
