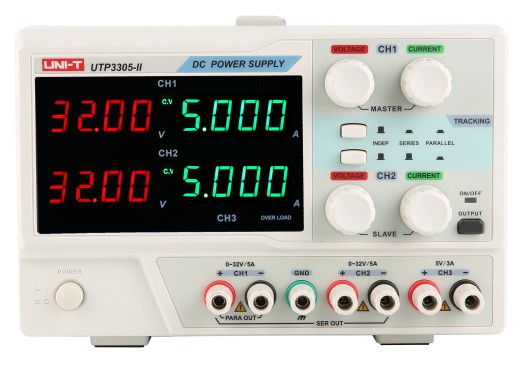

UNI-T UTP3305-II power supply
Details
The UNI-T UTP3305-II is a linear high-performance, yet affordable lab power supply that features two fully adjustable channels and one fixed channel. The adjustable channels can provide 160W of power each, over the range of 0-32V and 0-5A. The third channel provides a fixed output of 5V and 3A. Internally, the adjustable channels can be connected in series or parallel, delivering respectively a maximum voltage of 64V or a maximum current of 10A. The is an alternative power supply from the same series.
A disadvantage is that the power supply only has a 'coarse' adjustment knob, making it more difficult to set the power supply precisely. Also, the 3rd channel is fixed, which means that it is not possible to set a different voltage, for example 3.3V. The power supply also has one button to switch all channels on or off simultaneously, which makes it impossible to switch individual channels on or off.
The default 3-year warranty can be extended to 5 years by registering your instrument.
Specifications
| Voltage range CH1/2 | 0-32V |
| Current range CH1/2 | 0-5A |
| Voltage range CH3 | 5V |
| Current range CH3 | 3A |
| Power | 335W |
| Setting accuracy | 10mV/1mA |
| Ripple | ≤ 1mVrms/3mArms |
| Dimensions | 226 x 146 x 319 mm |
| Weight | 10.5 kg |
Accessories
The UNI-T UTP3305-II comes standard with:
- Power cord
Pros and cons
- 32V output
- Powerful, yet affordable power supply
- Channels cannot be switched on or off individually
- 3rd channel not adjustable
- No fine adjustment
- Relatively loud fan (even at low load)
Downloads
| UNI-T UTP3300-II datasheet |  (1.41 MB) | Download |
| UNI-T UTP3300-II manual | (2.61 MB) | Download |
