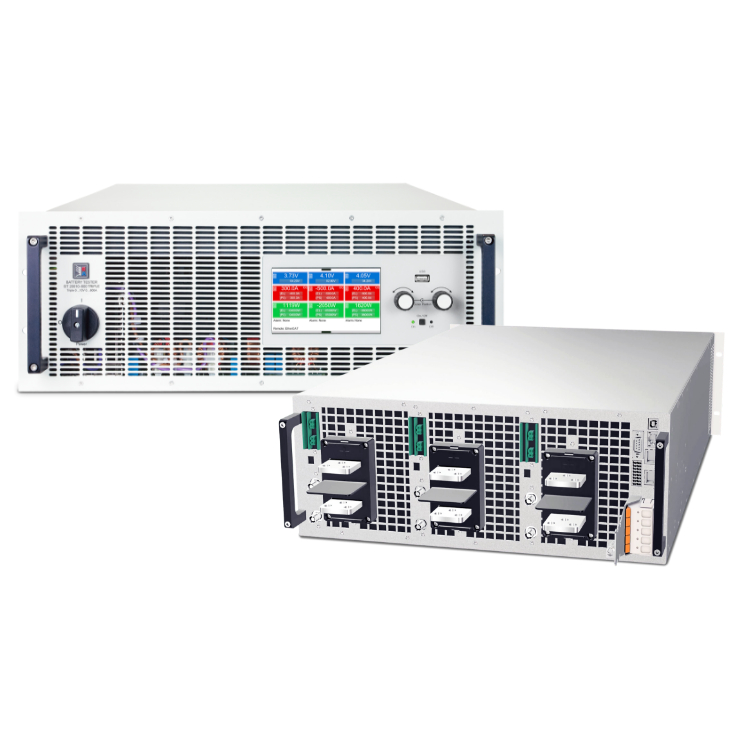

EA-BT series battery testers

On this page you can find everything you need to know about the EA-BT 20000 battery testers. These are powerful battery testers, the 3U and 4U versions have 1 channel and the triple 4U version has 3 channels. This series of battery testers can test with an output of 4kW, 6kW or 10kW. The three-channel version can test battery packs with 12kW, 18kW or 30kW when connected in parallel. The EA-BT 20000 has a high voltage and current measurement accuracy. All models feature a battery test, battery cycling and battery simulation operating modes.

For more information, see the brochure.

Contact us for more information about the EA-BT 20000 series and for ordering information.


Models

The EA-BT 20000 series consists of 28 powerful models, 8 of which feature 3 channels. The 3-channel models can triple the maximum output when the 3 channels are connected in parallel.

EA-BT 20000 3U specifications

Model Voltage Current Power
BT 20010-600 0 - 10 V 0 - 600 A 0 - 6000 W
BT 20060-500 0 - 60 V 0 - 500 A 0 - 15000 W
BT 20080-500 0 - 80 V 0 - 500 A 0 - 15000 W
BT 20200-210 0 - 200 V 0 - 210 A 0 - 15000 W
BT 20360-120 0 - 360 V 0 - 120 A 0 - 15000 W
BT 20500-90 0 - 500 V 0 - 90 A 0 - 15000 W
BT 20920-60 0 - 920 V 0 - 60 A 0 - 15000 W
BT 21000-40 0 - 1000 V 0 - 40 A 0 - 15000 W
BT 21500-30 0 - 1500 V 0 - 30 A 0 - 15000 W
BT 22000-20 0 - 2000 V 0 - 20 A 0 - 15000 W

EA-BT 20000 4U specifications

Model Voltage Current Power
BT 20010-1000 0 - 10 V 0 - 1000 A 0 - 10000 W
BT 20060-1000 0 - 60 V 0 - 1000 A 0 - 30000 W
BT 20080-1000 0 - 80 V 0 - 1000 A 0 - 30000 W
BT 20200-420 0 - 200 V 0 - 420 A 0 - 30000 W
BT 20360-240 0 - 360 V 0 - 240 A 0 - 30000 W
BT 20500-180 0 - 500 V 0 - 180 A 0 - 30000 W
BT 20920-120 0 - 920 V 0 - 120 A 0 - 30000 W
BT 21000-80 0 - 1000 V 0 - 80 A 0 - 30000 W
BT 21500-60 0 - 1500 V 0 - 60 A 0 - 30000 W
BT 22000-40 0 - 2000 V 0 - 40 A 0 - 30000 W

EA-BT 20000 triple 4U specifications

Model Voltage Current (per channel) Power (per channel)
BT 20010-400 triple 0 - 10 V 0 - 400 A 0 - 4000 W
BT 20010-600 triple 0 - 10 V 0 - 600 A 0 - 6000 W
BT 20060-340 triple 0 - 60 V 0 - 340 A 0 - 10000 W
BT 20080-340 triple 0 - 80 V 0 - 340 A 0 - 10000 W
BT 20200-140 triple 0 - 200 V 0 - 140 A 0 - 10000 W
BT 20360-80 triple 0 - 360 V 0 - 80 A 0 - 10000 W
BT 20500-60 triple 0 - 500 V 0 - 60 A 0 - 10000 W
BT 20920-40 triple 0 - 920 V 0 - 40 A 0 - 10000 W
