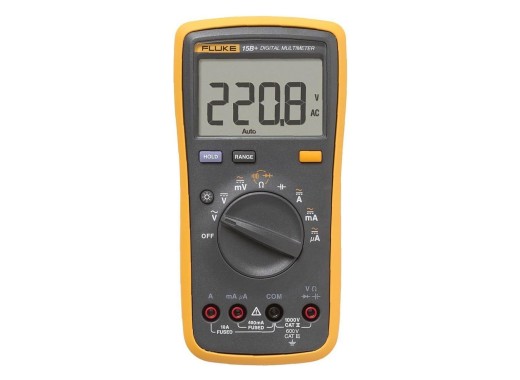

Fluke 15B+ multimeter
Details
The Fluke 15B+ is an affordable handheld digital multimeter for general electrical troubleshooting. It measures AC/DC voltage up to 1000V and current up to 10A, and adds resistance, continuity, diode and capacitance measurements for general electronics work. It shares the same compact housing as the 17B+, making it easy to operate with one hand.
The 4000-count display with white backlight keeps readings visible in distribution boards and poorly lit spaces. With a CAT III 600V safety rating and typical Fluke build quality, the 15B+ is suitable for residential and light-industrial environments. This multimeter uses an average-responding measurement and does not provide True-RMS measurements, so it is best suited to sinusoidal signals. If you are looking for a multimeter that also has the capabilities to measure frequency and temperature, consider checking out the 17B+.
Specifications
| Display resolution | 4000 counts, 3 3/4 digits |
| Max. AC voltage | 1000 V |
| Max. DC voltage | 1000 V |
| Max. AC current | 10 A |
| Max. DC current | 10 A |
| Max. resistance | 40 MΩ |
| Max. capacitance | 1000 μF |
| Other functions | Diode test, continuity, data hold, auto power-off |
| Power supply | 2× AA alkaline battery |
| Battery life | 500 h |
| True-RMS | No |
| Data logging | No |
| Safety rating | CAT III 600 V |
| Display | LCD with white backlight |
| Dimensions | 183 × 91 × 49.5 mm |
| Weight | 455 g |
Accessories
The Fluke 15B+ is supplied with:
- Fluke TL75 test leads
Pros and cons
- Great price/performance ratio
- Small form factor
- No True-RMS measurement
- Limited logging/communication options (no PC interface)
Downloads
| Fluke 15B+/17B+ user manual |  (1.03 MB) | Download |
| Fluke 15B+/17B+ user manual Dutch | (1.03 MB) | Download |
| Fluke 15B+/17B+ datasheet | (688.93 KB) | Download |
| Fluke 15B+/17B+ datasheet Dutch | (172.12 KB) | Download |
