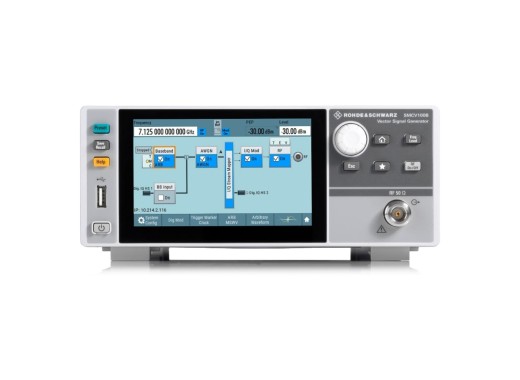

Rohde & Schwarz SMCV100BP3 RF signal generator
Promotion! This product is temporarily reduced in price until September 30th 2026!
Details
The Rohde & Schwarz signal generator model SMCV100B boasts extensive customizability, making it suitable for a wide range of applications. Its frequency range covers 4kHz to 3GHz, and it features a user-friendly 5" touchscreen interface. This generator is designed for broadcast, navigation, cellular, and wireless applications, catering to diverse industry needs.
The SMCV100BP3 bundle contains the following options:
- SMCVB-B103 (4 kHz - 3 GHz)
- SMCVB-K155 AM/FM/RDS
- SMCVB-K156 DAB/T-DMB
- SMCVB-KS10 DAB/T-DMB
Specifications
| Frequency range | 4 kHz to 3 GHz |
| RF Bandwidth | 60 Hz |
| Frequency precision | 0.001 Hz |
| Output amplitude range | -110 dBm up to +15 dBm |
| Phase noise | -100 dBc/ Hz @ 1 GHz |
| Frequency sweep mode | Triangle, saw-tooth Single, continuous |
| Trigger source | external trigger signal (user 1 or user 2 at rear), rotary knob, touch panel, remote control |
| Output impedance | 50 Ω |
| Interfaces | I/Q, LAN RJ-45, USB |
| Display | 5" capacitive touchscreen (800x480) |
| Dimensions | 222 x 97 x 366 mm |
| Weight | 4.7 kg |
Downloads
| Datasheet SMCV100BP2 |  (1.72 MB) | Download |
| SMCV100B data sheet | (1.56 MB) | Download |
