105 €105.00 Excl. VAT
Loading stock info
  •
Product number: ELE003144

Be the first to review this product

Details

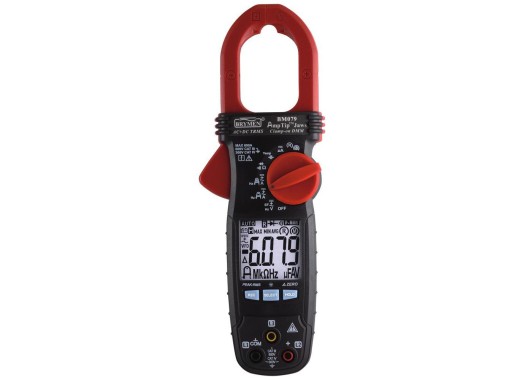

The Brymen BM079 is a compact but comprehensive current clamp. The BM079 is packed with unique features such as In-Rush Peak RMS, which can perform short peak RMS measurements up to a time duration of 80ms. It can also measure the fundamental voltage and frequency of almost all Variable Frequency Drives (VFDs).
Furthermore, this clamp works exactly as you are used to from Brymen, so this meter also has an excellent Auto-ranging function that greatly increases the speed and ease of use. The BM079 is able to True RMS AC and DC voltage and current, DC low-current, resistance, capacitance, temperature, phase rotation and frequency. It is also possible to measure continuity and the meter has EF detection. Another nice feature of the current clamp is that it has a record function with which Max, Min and Avg values can be stored. All in all, this Brymen current clamp is packed with functions and all values can be accurately read on the 6000 counts screen.

Are you looking for an less extensive model? Look at the Brymen BM078 current clamp.It has most of the features of the BM079 except DC low-current, temperature and phase rotation.

Specifications

Display 3 ⅚-Digits, 6000 count
Measurenent frequency 5 measurements per second
Measurement range and accuracy
MeasurementRangeAccuracy
AC voltage (Leads)100 mV - 600 V± (1.0 % +5)
DC voltage (Leads)100 mV - 600 V± (1.0 % +5)
AC current (Clamp)10 mA - 600 A50 Hz - 100 Hz: ± (1.8 % +5)
100 Hz - 400 Hz: ± (2.0 % +5)
DC current (Clamp)10 mA - 600 A± (2.0 % +5)
AC+DC current (Clamp)10 mA - 600 A50 Hz - 100 Hz: ± (2.2 % +7)
100 Hz - 400 Hz: ± (2.7 % +7)
AC current AmpTip™ (Clamp)10 mA - 60A± (1.5 % +5)
DC current AmpTip™ (Clamp)10 mA - 60A± (2.0 % +5)
AC+DC current AmpTip™ (Clamp)10 mA - 60A± (2.0 % +7)
DC Low-current (Leads)100 nA - 2000 µA± (1.0% +5)
Resistance (Leads)100 mΩ - 60 kΩ± (1.0 % +5)
Capacity100 nF - 2500 µF± (2.0 % +4)
Temperature-40 - 100 °C
100 - 400 °C
± (1.0 % +0.8)
± (1.0 % +1)
Other functions Diode tester, Continuity, Non-Contact EF, In-Rush Peak RMS, DataHold, REC, Phase Rotation
Dimensions 217 x 76 x 37 mm (l,w,h)
Weight 234 g

Accessories

This meter is supplied including:

  • Bkp60 type-K thermocouple
  • Alligator clips
  • Test leads
  • User manual
  • Carrying pouch
