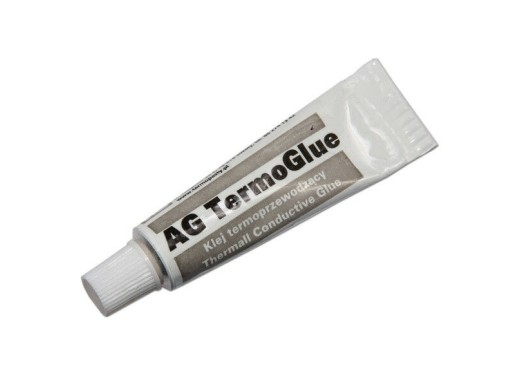

The AG TermoGlue heat conductive adhesive is the perfect way to fix radiators on, for example, transistors. It is also possible to fill gaps between heating elements with this glue.
The connection is very durable and offers good thermal conductivity.
Attention. The shelf life of this product is six months.
Specifications
| Drying time | 2 - 8 min (hardening: 24 - 48 uur) |
| Hardness | 45 - 75 (Shore A) |
| Tensile strength | 2 Mpa |
| Thermal conductivity | ≥1 W/mK |
| Resistance | ≤ 2 x 1015 c-in/W |
| Dielectric strength | 20 KV/mm |
| Max. operating temperature | 200 ℃ |
| Max. thickness | 6 mm |
| Contents | 10 g |
