Tekbox TBVC-SM6 calibration kit for TBVNA-6000

The Tekbox TBVC-SM6 is an SMA-type male VNA calibration kit for the Tekbox TBVNA-6000 vector network analyser. The TBVC-SM6 kit consists of an open, a short, a load and a through, which allows for accurate OSLT calibration over a frequency range from DC to 6GHz.

Model overview

Accessories

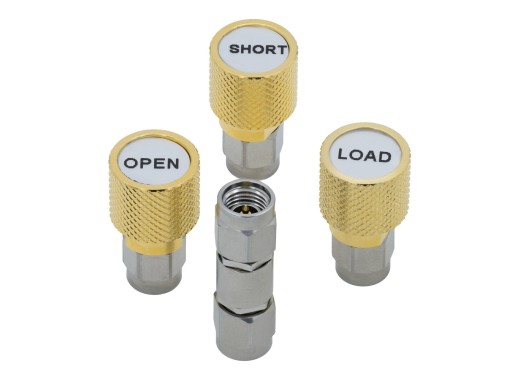

The calibration kit includes:

• SMA-type Open (Male, 50 Ω)
• SMA-type Short (Male, 50 Ω)
• SMA-type Match/Load (Male, 50 Ω)
• Through (Male-male, 50 Ω)
• Storage box (145 x 145 x 55 mm)

Downloads

Tekbox TBVC-SM6 - User manual

(185.46 KB)

Download
