Tekbox TBTER terminators
Details
The Tekbox TBTER terminators are terminators with a power ranging from 0.5W to 25W and a frequency range from 1 GHz to 6 GHz. All terminators have a VSWR of <1.2. The RF connectors of the terminators also differ, and is either a N-male connector or a BNC-male connector.
Model overview
We offer multiple terminators from Tekbox which differ in power, frequency range, RF connector and type:| Model | Power | Frequency range | RF connector | Type | Price |
|---|---|---|---|---|---|
| TBTER-0.5W-1GHz-50-BNCf/BNCM | 0.5 W | 1 GHz | BNC-male/BNC-female | 50 Ω feed-through termination | |
| TBTER-0.5W-2GHz-50-BNCM | 0.5 W | 2 GHz | BNC-male | 50 Ω load | |
| TBTER-2W-3GHz-50-BNCM | 2 W | 3 GHz | BNC-male | 50 Ω load | |
| TBTER-2W-6GHz-50-N | 2 W | 6 GHz | N-male | 50 Ω load | |
| TBTER-10W-6GHz-50-N | 10 W | 6 GHz | N-male | 50 Ω load | |

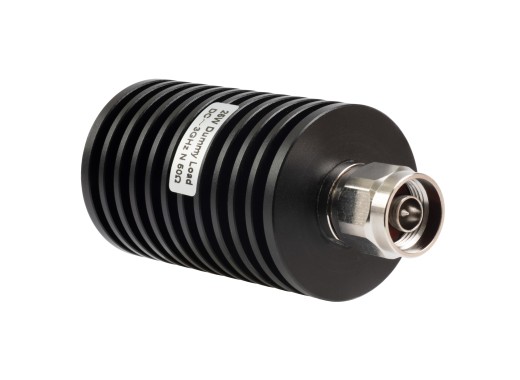

| TBTER-25W-3GHz-50-N | 25 W | 3 GHz | N-male | 50 Ω load |
