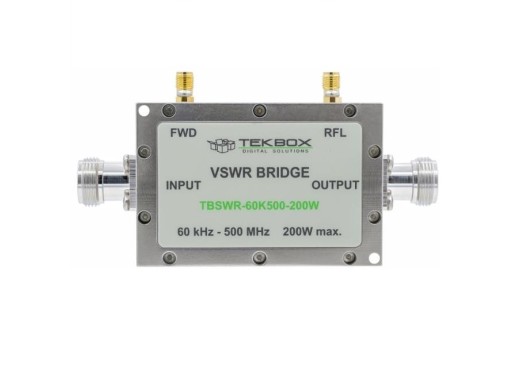

Tekbox TBSWR-60K500 high power VSWR bridge
Details
The TBSWR-60K500 high power Voltage Standing Wave Ratio (VSWR) bridge is designed for forward / reverse power measurement in EMC immunity test setups in the HF and VHF range. The bridge combines the 60kHz - 500MHz frequency range and directivity of a directional bridge together with the low insertion loss of 0.15dB - 0.6dB and power handling capability of 200W.
Specifications
| Frequency range | 60 kHz – 500 MHz |
| Max. power | 200 W |
| Insertion loss | 60 kHz - 200 MHz: < 0.15 dB 200 MHz - 500 MHz: < 0.6 dB |
| Coupling | 60 kHz - 100 MHz: -50 dB ± 0.7 dB 100 - 500 MHz: -50 dB + 0.7/- 10 dB |
| Directivity | 60 kHz – 500 MHz: > 20 dB 150 kHz – 300 MHz: >25 dB 200 kHz – 30 MHz > 30 dB |
| Impedance | 50 Ω |
| Port matching | > 20 dB |
| Interfaces | N-female (through ports), SMA-female (coupling ports) |
| Dimensions | 113 x 60 x 35 mm |
| Weight | 0.29 Kg |
Accessories
The TBSWR-60K500 comes by default with:
- 2x SMA 50 Ω terminators
- Wooden storage box
Downloads
| Tekbox TBSWR-60K500 manual |  (497.47 KB) | Download |
