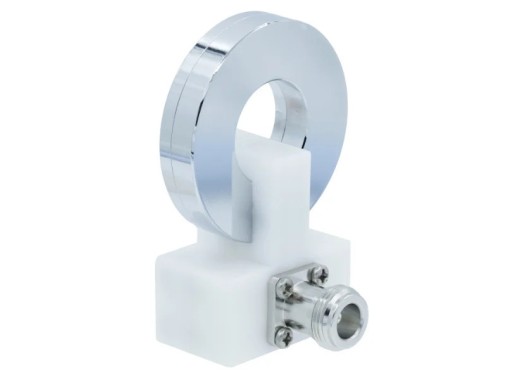

Tekbox TBRS101 set for RS101 testing
Details
The Tekbox TBRS101-SET consists of the TBRS101-TX radiating loop, TBRS101-RX field monitoring loop and the TBCCP1-2K70 coaxial RF current monitoring probe. This set is used to test the ability of equipment to withstand magnetic field radiation in the 30Hz to 100kHz frequency range at a close range of 5cm. The complete set meets the standard for MIL-STD-461G and RS101 testing.
The TBRS101-TX radiating loop has a diameter of 12cm, and the distance between the winding and the EUT is 5cm. The TBRS101-RX monitoring loop has a 4.1cm diameter. The loop receives magnetic field radiation normal to the containing plane, 5cm from the TBRS101-TX radiating loop, which produces a voltage signal depending on the intensity of the B-field and H-field radiation from the loop output.
The TBCCP1-2K70 coaxial RF current monitoring probe, with a bandwidth range of 9kHz to 30MHz, is included in the set for calibration.
Specifications
| TBRS101-TX radiating loop | |
| Frequency range | 30 Hz - 100 kHz |
| Loop diameter | 12 cm |
| Self inductance | 90 µH |
| Dimensions | 38 x 15.2 x 15.2 cm |
| Weight | 0.5 kg |
| TBRS101-RX field monitoring loop | |
| Frequency range | 30 Hz - 100 kHz |
| Loop diameter | 4.1 cm |
| Self inductance | 180 µH |
| Dimensions | 4.37 x 5.42 x 7.92 cm |
| Weight | 0.1 kg |
| Standards | MIL-STD-461G / RS101 |
Accessories
- POM adapter for the TBTP3 tripod
- Banana-male to BNC-female adapter
- 50Ω termination
Downloads
| TBRS101 user manual |  (543.2 KB) | Download |
