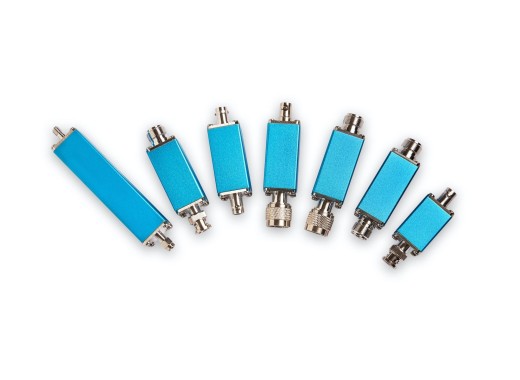

The TBRFH1 series are housings for RF building blocks operating up to 6GHz. The housing can be ordered with or without a feed through capacitor.
If you are looking for larger housings, please check out the Tekbox TBRFH2, H3, H5, H6 and H7 series.
If the housing doesn't include a Feed through capacitor and one is needed, they can be bought separately.
Quick navigation
N-male to N-female
| Tekbox SKU | Sheet thickness (mm) | Length housing (mm) | Feed through capacitor | Price |
|---|
| TBRFH1-35-NM-NF-3-0 | 3.2 | 35 | |
34.9
€34.90
Excl. VAT
|
| TBRFH1-50-NM-NF-3-0 | 3.2 | 50 | |
35.9
€35.90
Excl. VAT
|
| TBRFH1-100-NM-NF-3-0 | 3.2 | 100 | |
36.9
€36.90
Excl. VAT
|
| TBRFH1-35-NM-NF-3-1 | 3.2 | 35 | |
48.4
€48.40
Excl. VAT
|
| TBRFH1-50-NM-NF-3-1 | 3.2 | 50 | |
49.4
€49.40
Excl. VAT
|
| TBRFH1-100-NM-NF-3-1 | 3.2 | 100 | |
50.4
€50.40
Excl. VAT
|
| TBRFH1-35-NM-NF-6-0 | 6.4 | 35 | |
36.4
€36.40
Excl. VAT
|
| TBRFH1-50-NM-NF-6-0 | 6.4 | 50 | |
37.4
€37.40
Excl. VAT
|
| TBRFH1-100-NM-NF-6-0 | 6.4 | 100 | |
38.4
€38.40
Excl. VAT
|
| TBRFH1-35-NM-NF-6-1 | 6.4 | 35 | |
49.9
€49.90
Excl. VAT
|
| TBRFH1-50-NM-NF-6-1 | 6.4 | 50 | |
50.9
€50.90
Excl. VAT
|
| TBRFH1-100-NM-NF-6-1 | 6.4 | 100 | |
51.9
€51.90
Excl. VAT
|
▲ Back to top
N-female to N-female
| Tekbox SKU | Sheet thickness (mm) | Length housing (mm) | Feed through capactior | Price |
|---|
| TBRFH1-35-NF-NF-3-0 | 3.2 | 35 | |
34.9
€34.90
Excl. VAT
|
| TBRFH1-50-NF-NF-3-0 | 3.2 | 50 | |
35.9
€35.90
Excl. VAT
|
| TBRFH1-100-NF-NF-3-0 | 3.2 | 100 | |
36.9
€36.90
Excl. VAT
|
| TBRFH1-35-NF-NF-3-1 | 3.2 | 35 | |
48.4
€48.40
Excl. VAT
|
| TBRFH1-50-NF-NF-3-1 | 3.2 | 50 | |
49.4
€49.40
Excl. VAT
|
| TBRFH1-100-NF-NF-3-1 | 3.2 | 100 | |
50.4
€50.40
Excl. VAT
|
| TBRFH1-35-NF-NF-6-0 | 6.4 | 35 | |
36.4
€36.40
Excl. VAT
|
| TBRFH1-50-NF-NF-6-0 | 6.4 | 50 | |
37.4
€37.40
Excl. VAT
|
| TBRFH1-100-NF-NF-6-0 | 6.4 | 100 | |
38.4
€38.40
Excl. VAT
|
| TBRFH1-35-NF-NF-6-1 | 6.4 | 35 | |
49.9
€49.90
Excl. VAT
|
| TBRFH1-50-NF-NF-6-1 | 6.4 | 50 | |
50.9
€50.90
Excl. VAT
|
| TBRFH1-100-NF-NF-6-1 | 6.4 | 100 | |
51.9
€51.90
Excl. VAT
|
▲ Back to top
SMA-male to SMA-female
| Tekbox SKU | Sheet thickness (mm) | Length housing (mm) | Feed through capacitor | Price |
|---|
| TBRFH1-35-SMAM-SMAF-3-0 | 3.2 | 35 | |
25.9
€25.90
Excl. VAT
|
| TBRFH1-50-SMAM-SMAF-3-0 | 3.2 | 50 | |
26.9
€26.90
Excl. VAT
|
| TBRFH1-100-SMAM-SMAF-3-0 | 3.2 | 100 | |
27.9
€27.90
Excl. VAT
|
| TBRFH1-35-SMAM-SMAF-3-1 | 3.2 | 35 | |
39.4
€39.40
Excl. VAT
|
| TBRFH1-50-SMAM-SMAF-3-1 | 3.2 | 50 | |
40.4
€40.40
Excl. VAT
|
| TBRFH1-100-SMAM-SMAF-3-1 | 3.2 | 100 | |
41.4
€41.40
Excl. VAT
|
| TBRFH1-35-SMAM-SMAF-6-0 | 6.4 | 35 | |
27.4
€27.40
Excl. VAT
|
| TBRFH1-50-SMAM-SMAF-6-0 | 6.4 | 50 | |
28.4
€28.40
Excl. VAT
|
| TBRFH1-100-SMAM-SMAF-6-0 | 6.4 | 100 | |
29.4
€29.40
Excl. VAT
|
| TBRFH1-35-SMAM-SMAF-6-1 | 6.4 | 35 | |
40.9
€40.90
Excl. VAT
|
| TBRFH1-50-SMAM-SMAF-6-1 | 6.4 | 50 | |
41.9
€41.90
Excl. VAT
|
| TBRFH1-100-SMAM-SMAF-6-1 | 6.4 | 100 | |
42.9
€42.90
Excl. VAT
|
▲ Back to top
SMA-female to SMA-female
| Tekbox SKU | Sheet thickness (mm) | Length housing (mm) | Feed through capacitor | Price |
|---|
| TBRFH1-35-SMAF-SMAF-3-0 | 3.2 | 35 | |
24.9
€24.90
Excl. VAT
|
| TBRFH1-50-SMAF-SMAF-3-0 | 3.2 | 50 | |
25.9
€25.90
Excl. VAT
|
| TBRFH1-100-SMAF-SMAF-3-0 | 3.2 | 100 | |
26.9
€26.90
Excl. VAT
|
| TBRFH1-35-SMAF-SMAF-3-1 | 3.2 | 35 | |
38.4
€38.40
Excl. VAT
|
| TBRFH1-50-SMAF-SMAF-3-1 | 3.2 | 50 | |
39.4
€39.40
Excl. VAT
|
| TBRFH1-100-SMAF-SMAF-3-1 | 3.2 | 100 | |
40.4
€40.40
Excl. VAT
|
| TBRFH1-35-SMAF-SMAF-6-0 | 6.4 | 35 | |
26.4
€26.40
Excl. VAT
|
| TBRFH1-50-SMAF-SMAF-6-0 | 6.4 | 50 | |
27.4
€27.40
Excl. VAT
|
| TBRFH1-100-SMAF-SMAF-6-0 | 6.4 | 100 | |
28.4
€28.40
Excl. VAT
|
| TBRFH1-35-SMAF-SMAF-6-1 | 6.4 | 35 | |
39.9
€39.90
Excl. VAT
|
| TBRFH1-50-SMAF-SMAF-6-1 | 6.4 | 50 | |
40.9
€40.90
Excl. VAT
|
| TBRFH1-100-SMAF-SMAF-6-1 | 6.4 | 100 | |
41.9
€41.90
Excl. VAT
|
▲ Back to top
BNC-male to BNC-female
| Tekbox SKU | Sheet thickness (mm) | Length housing (mm) | Feed through capacitor | Price |
|---|
| TBRFH1-35-BNCM-BNCF-3-0 | 3.2 | 35 | |
23.9
€23.90
Excl. VAT
|
| TBRFH1-50-BNCM-BNCF-3-0 | 3.2 | 50 | |
24.9
€24.90
Excl. VAT
|
| TBRFH1-100-BNCM-BNCF-3-0 | 3.2 | 100 | |
25.9
€25.90
Excl. VAT
|
| TBRFH1-35-BNCM-BNCF-3-1 | 3.2 | 35 | |
37.4
€37.40
Excl. VAT
|
| TBRFH1-50-BNCM-BNCF-3-1 | 3.2 | 50 | |
38.4
€38.40
Excl. VAT
|
| TBRFH1-100-BNCM-BNCF-3-1 | 3.2 | 100 | |
39.4
€39.40
Excl. VAT
|
| TBRFH1-35-BNCM-BNCF-6-0 | 6.4 | 35 | |
25.4
€25.40
Excl. VAT
|
| TBRFH1-50-BNCM-BNCF-6-0 | 6.4 | 50 | |
26.4
€26.40
Excl. VAT
|
| TBRFH1-100-BNCM-BNCF-6-0 | 6.4 | 100 | |
27.4
€27.40
Excl. VAT
|
| TBRFH1-35-BNCM-BNCF-6-1 | 6.4 | 35 | |
38.9
€38.90
Excl. VAT
|
| TBRFH1-50-BNCM-BNCF-6-1 | 6.4 | 50 | |
39.9
€39.90
Excl. VAT
|
| TBRFH1-100-BNCM-BNCF-6-1 | 6.4 | 100 | |
41.9
€41.90
Excl. VAT
|
▲ Back to top
BNC-female to BNC-female
| Tekbox SKU | Sheet thickness (mm) | Length housing (mm) | Feed through capacitor | Price |
|---|
| TBRFH1-35-BNCF-BNCF-3-0 | 3.2 | 35 | |
23.9
€23.90
Excl. VAT
|
| TBRFH1-50-BNCF-BNCF-3-0 | 3.2 | 50 | |
24.9
€24.90
Excl. VAT
|
| TBRFH1-100-BNCF-BNCF-3-0 | 3.2 | 100 | |
25.9
€25.90
Excl. VAT
|
| TBRFH1-35-BNCF-BNCF-3-1 | 3.2 | 35 | |
37.4
€37.40
Excl. VAT
|
| TBRFH1-50-BNCF-BNCF-3-1 | 3.2 | 50 | |
38.4
€38.40
Excl. VAT
|
| TBRFH1-100-BNCF-BNCF-3-1 | 3.2 | 100 | |
39.4
€39.40
Excl. VAT
|
| TBRFH1-35-BNCF-BNCF-6-0 | 6.4 | 35 | |
25.4
€25.40
Excl. VAT
|
| TBRFH1-50-BNCF-BNCF-6-0 | 6.4 | 50 | |
26.4
€26.40
Excl. VAT
|
| TBRFH1-100-BNCF-BNCF-6-0 | 6.4 | 100 | |
27.4
€27.40
Excl. VAT
|
| TBRFH1-35-BNCF-BNCF-6-1 | 6.4 | 35 | |
38.9
€38.90
Excl. VAT
|
| TBRFH1-50-BNCF-BNCF-6-1 | 6.4 | 50 | |
39.9
€39.90
Excl. VAT
|
| TBRFH1-100-BNCF-BNCF-6-1 | 6.4 | 100 | |
41.9
€41.90
Excl. VAT
|
