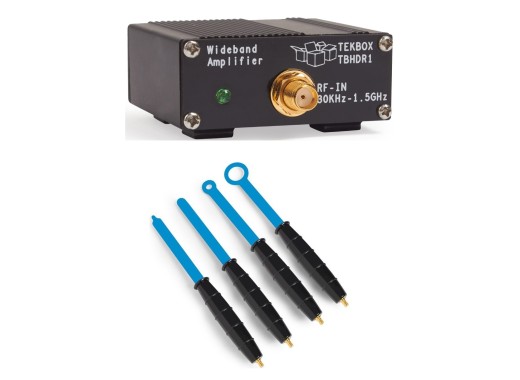

Tekbox TBPS01-TBHDR1 EMC probe set and RF preamplifier
Details
The Tekbox TBPS01-TBHDR1 set consists of the and the .
Probes
The Tekbox TBPS01 near-field EMC probe set consists of 4 probes for electric- and magnetic field radiated emissions EMC pre-compliance measurements. The probes are usually connected to a spectrum analyser and function similarly to wide bandwidth antennas. The biggest probe is the most sensitive to radiation and the smallest probe is the least sensitive. The probes can also be used for RF immunity tests by radiating RF signals into possibly vulnerable sections of a circuit. Finally, the probes can be used to measure signals non-invasively. Paired with the TBHDR1 RF amplifier it is possible to measure frequencies, phase, noise and spectral components of RF signals. All the probes have their loops shielded to avoid picking up common-mode noise.
| Model | Length | Shape | Width of loop/point | Frequency range |
| H20 (Magnetic field) | 170 mm | Loop | 20 mm | 6 GHz |
| H10 (Magnetic field) | 170 mm | Loop | 10 mm | 6 GHz |
| H5 (Magnetic field) | 170 mm | Loop | 5 mm | 6 GHz |
| E5 (Electric field) | 170 mm | Point | 5 mm | 6 GHz |
RF preamplifier
The TBHDR1 RF amplifier is a high dynamic range amplifier with a frequency range from 30kHz to 1.5GHz. The RF amplifier has a typical gain of 22dB for this range. Due to its low noise figure and high 3rd order output intercept point it is an ideal preamplifier for spectrum analysers and receivers in EMC test applications. It also performs well as an amplifier for active loop antennas.
| Frequency range | 30 kHz - 1.5 GHz |
| Maximum supply voltage | 5.5 V |
| Maximum input power | 10 mW |
| 1dB output compression point | 19 dBm |
| 3rd order intercept point | 37 dBm |
| Input matching (S11) | -16 dB |
| Reverse isolation (S12) | -28 dB |
| Typical gain (S21) | 22 dB |
| Output matching (S22) | -10 dB |
| Noise figure | 2.7 dB |
| Connectivity | Input/output: 50 Ω, SMA female mini USB-B |
| Dimensions | 160 x 160 x 40 mm |
| Weight | 0.21 kg |
Accessories
The total set includes:
- SMA to SMB cable, 75 cm
- SMA-female to N-male adapter
- SMA-male to SMA-male cable, 25 cm
- SMA-male to N-male cable, 75cm
- SMA-female to N-male adapter
- USB cable
Pros and cons
- The probes are shielded
- Multiple measurement possibilities
Downloads
| Near Field Probe manual |  (601.15 KB) | Download |
| EMC pre-compliance testing handleiding | (477.94 KB) | Download |
| Tekbox TBHDR1 manual | (2.02 MB) | Download |
