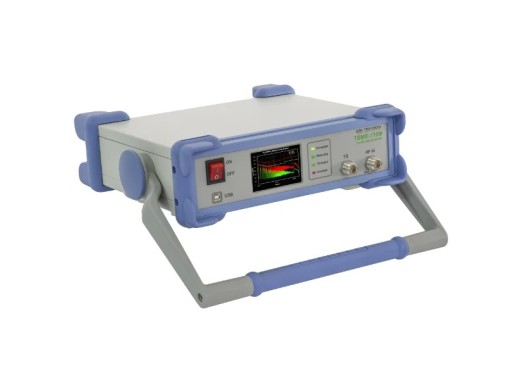

Tekbox TBMR-110M EMI-Analyser DC-110 MHZ
Details
The Tekbox TBMR-110M is a versatile EMI analyser. These are spectrum analysers specifically designed for EMI applications and are much faster than typical spectrum analysers. The TBMR-110M can measure whether the electromagnetic emissions of electronic items do not exceed the specified limit. The TBMR-110M is compliant with CISPR-16, ANSI and MIL-STD. This EMI analyser has a frequency range of 1Hz to 110MHz. There are multiple data manipulation and display features included. Furthermore, the TBMR-110M has a type-N RF input connector and a maximum RF input level of 30dBm. There is also an oscilloscope function included. For more information about the spectrum analyser and the oscilloscope, please refer to the datasheet.
Specifications
| Bandwidth | 1 Hz - 110 MHz |
| RBW | 0.1 Hz - 3.5 MHz |
| DANL | - 162 dBm/Hz |
| Amplitude accuracy | < 0.8 dB |
| Max. input power | 30 dBm |
| Tracking generator | Yes |
| Interfaces | USB |
| Dimensions | 330 x 380 x 120 mm |
| Weight | 5.2 kg |
Accessories
The Tekbox TBMR-110M comes with:- 1x Type-A to Type-B USB cable
- 1x IEC power cord
- 1x TBFL1 combined attenuator
Pros and cons
- Fast spectrum analyser
- Oscilloscope option
Downloads
| Tekbox TBMR-110M manual |  (4.2 MB) | Download |
| Tekbox TBMR-110M datasheet | (249.5 KB) | Download |
