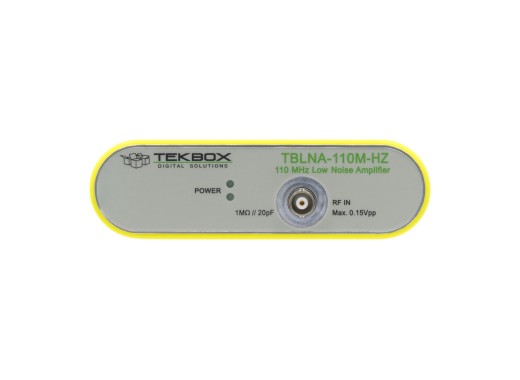

Tekbox TBLNA-110M-HZ DC-coupled impedance converter
Details
The TekBox TBLNA-110M-HZ is a DC-coupled impedance converter designed to match high impedance sources from 1MΩ to 50Ω. The TBLNA-110M-HZ can be used for in-circuit measurements using standard oscilloscope probes in 50Ω systems, as well as a high impedance frontend for RF equipment with 50Ω inputs, such as spectrum analysers. It has a flat frequency response from DC to 110MHz and a 3dB bandwidth range from DC to 500MHz, while remaining usable up to 1GHz. It also provides two separate outputs: one with a gain of 0dB and another with a gain of 20dB, which is useful when used with a 1:10 oscilloscope probe, as the output can compensate for the attenuation of the probe.
Specifications
| Frequency range | DC - 110 MHz (Flat) DC - 500 MHz (3 dB) |
| Input impedance | 1 MΩ / 20 pF |
| Output impedance | 50 Ω |
| Output return loss | > 25 dB |
| Gain | 0 dB or 20 dB |
| RF connector | BNC female |
| Noise floor | < 10 nV/√Hz typ. (> 2 MHz) |
| Power supply | 12 V (DC) |
| Dimensions | 135 x 40 x 110 mm |
| Weight | 350 g |
Accessories
The TekBox TBLNA-110M-HZ comes with:- Power cord
Pros and cons
- 2 separate outputs with different gains
- Flat response up to 110MHz
Downloads
| Tekbox TBLNA-110-HZ user manual |  (1.48 MB) | Download |
