Tekbox TBLLA-2M triple loop antenna
Details

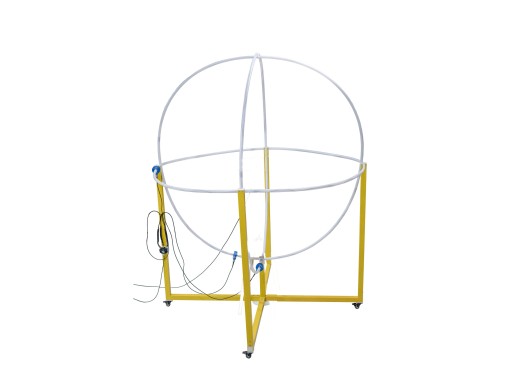

The Tekbox TBLLA-2M is a large loop antenna (triple loop), each with a 2-meter diameter, mounted on a lightweight hollow WPC frame. The antenna is designed to measure the induced magnetic field of luminaries (lighting), following CISPR 16-1-4 and CISPR 15/EN 55015. It has a frequency range of 3Hz - 30MHz. Each of the three loop elements receives magnetic field radiation normal to the containing plane and outputs a voltage signal proportional to the strength of the H-field radiation. The antenna comes equipped with three TBCCP1-2K70 current probes.
The antenna does not come with a TBTP3 tripod. More options for the TBLLA-2M are the CDP calibration dipole and the CDP-SS-B support.
Specifications
| Type of antenna | Large loop antenna (triple loop) |
| Frequency range | 3 kHz - 30 MHz |
| Nominal impedance | 50 Ω |
| Effective antenna correction factor | 0 dB |
| Connector | N-type female |
| Dimensions | 206.2 x 206.2 x 254.7 cm |
| Weight | 25 kg |
Accessories
The TBLLA-2M comes with:
- TBTP3 wooden tripod
- DUT plate
- 3x TBCCP1-2K70 coaxial RF current monitoring probes
- Required coaxial cables
- Required ferrite cables
- RF coaxial switch
- Factory calibration report
