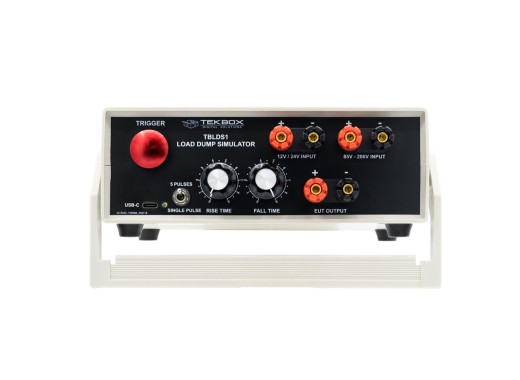

Tekbox TBLDS1 load dump simulator
Details
The Tekbox TBLDS1 is an electronic load used in pre-compliance setups. The load requires an external power supply to operate, which should be delivered through a USB-C cable, cable not included. The load dumps pulses which are in accordance with the following standards: ISO 7637-2, ISO 16750-2 and J2139. The TBLDS1 offers an affordable alternative for design engineers who want to validate before compliance testing, without the cost of standard load dump simulators, without the cost of standard load dump simulators. Moreover, a low-voltage and a high-voltage power supply are required to complete the test setup. More information can be found in the manual below.
Specifications
| Rise time | adjustable, typ. 100 μs – 10 ms | |
| Fall time | adjustable, typ. 700 ms – 1 s | |
| Ri | 2 Ω | |
| Operation modes | Single pulse, 5 pulses at 10 s interval | |
| EUT current | 3 A max in a 12 V system 1.5 A max in a 24 V system |
|
| EUT voltage | +14 V / +28 V (external power supply) | |
| Transient supply | +230 V max (external power supply) | |
| Dimensions | 19 x 22 x 8 cm | |
| Weight | 900 g |
Pros and cons
- No USB-C cable included
Downloads
| Tekbox TBLDS1 user manual |  (817.58 KB) | Download |
