Tekbox TBL5063-3 LISN
Details

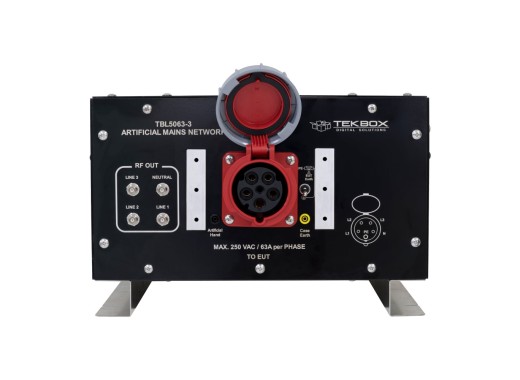

The Tekbox TBL5063-3 is an LISN designed to measure conducted emissions from single-phase and 3-phase AC-powered devices. This LISN is designed to perform EMC pre-compliance testing in the frequency range of 9kHz to 30MHz, which is in accordance with the CISPR 16-1-2 standard. It can be operated with any equipment with a supply voltage and current that does not exceed 690/400V and 63A. The TBL5063-3 can also measure conducted noise on each phase and the neutral conductor, all of which have separate RF outputs. However, the LISN does not have an integrated high-pass filter to help suppress residual 50Hz AC from the RF output. Instead, an external TBHPF1-9kHz high-pass filter is included with the LISN. In addition, the TBL5063-3 is equipped with an artificial hand connection to help perform noise measurements on handheld devices.
Specifications
| Frequency range | 9 kHz - 30 MHz |
| Max. voltage | 690/400 V / 50-60 Hz (CAT II) |
| Max. current | 63 A |
| Impedance | 50 Ω ║ (50 µH + 5 Ω) |
| Artificial hand | 220 pF + 511 Ω |
| Connectivity | 50 Ω BNC |
| Dimensions | 97 x 50 x 30 cm |
| Weight | 51 kg |
Accessories
The Tekbox TBL5063-3 comes delivered with:
- 1x Power cord
- 1x RG223 BNC-male to N-male coaxial cable (100 cm)
- 3x 50 Ω termination
- 1x TBHPF1-9kHz high pass filter
Pros and cons
- Both 3-phase and single-phase
- Separate RF outputs
- No built-in limiter
- No integrated high-pass filter
Downloads
| Tekbox TBL5063-3 user manual |  (1.54 MB) | Download |
