Tekbox TBL5016-2B LISN
Details

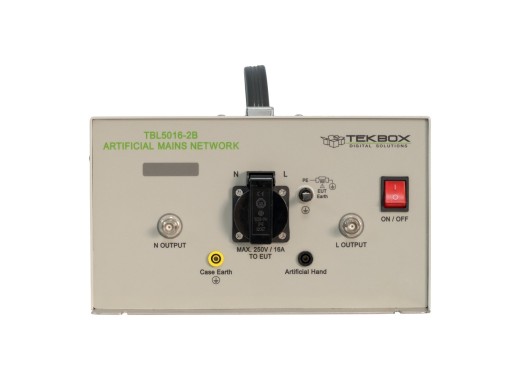

The TBL5016-2B is a 50 µH LISN that can be used to measure the conducted noise on the feed line of single-phase AC-powered devices. This LISN is designed to perform EMC pre-compliance testing in the frequency range from 9 kHz to 30 MHz.
The TBL5016-2B is connected between the current source and the device under test, and the conducted noise can be measured in relation to the phase and neutral line. This conducted noise is connected to the 50Ω BNC terminal with minimal losses, where the interference can be analysed. With, for example, a spectrum analyser.
The TBL5016-2B has separate measurement outputs for each channel for connection with a LISN Mate and a connection for an artificial hand. An inductor of 5 μH disconnects the source connection and the device connection. Furthermore, the LISN isolates the device to be tested and the BNC terminal from the noise. This is caused by the current source.
For more information about measuring with the TBL5016-2B and EMC guidelines, please consult the PDFs at the bottom of this page. Furthermore, there is also PC software to further analyse EMC measurements. This software, EMCview, can be found here.
Watch out! This LISN is suitable for EMC testing on single-phase AC-powered devices. For testing on DC-powered devices you can use the TBOH01.
Specifications
| Frequency range | 9 kHz - 30 MHz |
| Max. voltage | 250 V / 50-60 Hz (CAT II) |
| Max. current | 16 A |
| Impedance | 50 Ω ║ (50 µH + 5 Ω) |
| Artificial hand | 220 pF + 511 Ω |
| Power cord | IEC 60320 C19 |
| Dimensions | 35 x 18 x 41 cm |
| Weight | 10.2 kg |
Pros and cons
- No limiter
- No switch
Downloads
| Tekbox TBL5016-2B user manual |  (1.54 MB) | Download |
