Tekbox TBL5008-2B LISN
Details

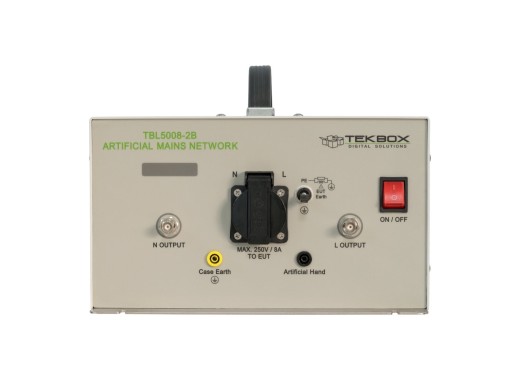

The TBL5008-2B is a 50 µH LISN that can be used to measure the conducted noise on the feed line of single-phase AC-powered devices. This LISN is designed to perform EMC pre-compliance testing in the frequency range from 9 kHz to 30 MHz.
The TBL5008-2B is connected between the current source and the device under test, and the conducted noise can be measured in relation to the phase and neutral line. This conducted noise is connected to the 50Ω BNC terminal with minimal losses, where the interference can be analysed. With, for example, a spectrum analyser. Finally, the TBL5008-2B is equipped with a connection for an artificial hand.
For more information about measuring with the TBL5008-2B and EMC guidelines, please consult the PDFs at the bottom of this page. Furthermore, there is also PC software to further analyse EMC measurements. This software, EMCview, can be found here.
Watch out! This LISN is suitable for EMC testing on single-phase AC-powered devices. For testing on DC-powered devices you can use the TBOH01.
Specifications
| Frequency range | 9 kHz - 30 MHz |
| Max. voltage | 250 V / 50-60 Hz (CAT II) |
| Max. current | 8 A |
| Impedance | 50 Ω ║ (50 µH + 5 Ω) |
| Artificial hand | 220 pF + 511 Ω |
| Power cord | IEC 60320 C13 |
| Dimensions | 35 x 18 x 41 cm |
| Weight | 8 kg |
