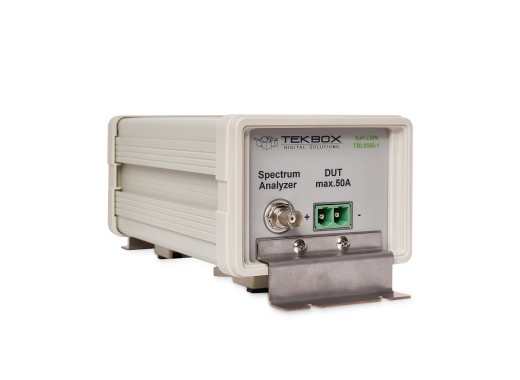

Tekbox TBL0550-1 LISN
Details
The Tekbox TBL0550-1 is a 60V 50A LISN (Line Impedance Stabilization Network) that can be used to measure the 'conducted noise' on the supply line of DC-powered devices. This LISN is designed to perform EMC pre-compliance tests in the frequency range from 150 kHz to 110 MHz. The TBL0550-1 can supply the DUT (Device Under Test) with a maximum DC current of 50 A. The connection of the power supply and the DUT are disconnected by a 5 µH inductor. The 1μF capacitor can be disconnected internally by removing a jumper.
The LISN is connected to the supply line of a DUT. The resulting noise on the supply line can be measured by means of a spectrum analyser on the BNC connector. Two Tekbox TBL0550-1 in combination with the Tekbox LISN Mate ensure that not only the 'common mode', but also the 'differential mode' of the noise can be measured. The TBL0550-1 complies with EMC directives CISPR 16-1-2, CISPR-25, EN55025, MIL-STD-461F and ISO11452-4 with limitations DO-160/ED-14G and ISO 7637-2.
Specifications
| Frequency range | 100 kHz - 150 MHz |
| Max. voltage | 60 V DC |
| Max. current | 25 A |
| DC resistance | < 9 mΩ supply+ to DUT+; < 2 mΩ supply- to DUT- |
| Connectivity | BNC, high current plug/screw terminals: Phoenix contact |
| Dimensions | 120 x 100 x 225 mm |
| Weight | 1.6 kg |
Accessories
The Tekbox TBL0550-1 is supplied including:
- BNC to N RG232 cable
- Connectors
- Ground brackets
Pros and cons
- High current
- Low DC resistance
Downloads
| Tekbox TBL0550-1 manual |  (834.7 KB) | Download |
