Tekbox TBESDT2 ESD-Target
Details
The Tekbox TBESDT2 ESD-target can be used to verify ESD-simulators. The TBESDT2 is a current sensing transducer and it can be used to take measurements compliant with IEC 61000-4-2 up to 4GHz. The ESD-Target is used to measure, test and calibrate the ESD pulse from a ESD gun.

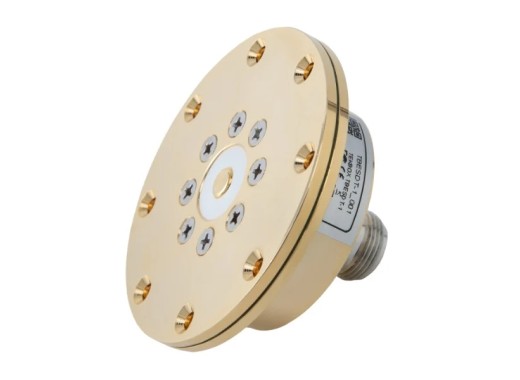

Take note, the images are of the similar looking Tekbox TBESDT1 model.
Specifications
| Resistance | 1 Ω ± 1 % |
| Frequency range | DC - 4 GHz |
| Max. pulse amplitude | ± 30 kV |
| Dimensions | Target: ⌀ 70 mm x H 40 mm Case: 340 x 260 x 110 mm |
| Weight | Target: 0.5 kg Incl. case: 2.1 kg |
Accessories
The Tekbox TBESDT2 ESD target comes with:- 1x 20 dB attenuator
- 1x N-male to SMA-male coaxial cable 100cm
- 1x SMA-female to BNC-male coaxial adapter
- Aluminium carrying case
Downloads
| Tekbox TBESDT2 manual |  (186.24 KB) | Download |
