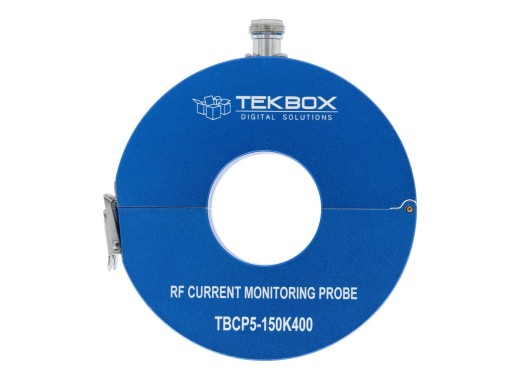

The Tekbox TBCP5-150K400 is a RF current probe for EMC pre-compliance testing.
The probe has a flat response with a 3 dB bandwidth from 150 kHz to 400 MHz and is characterized over the frequency range from 10 Hz to 500 MHz.
The TBCP5-150K400 has a maximum bias current of 200 Ampere with no influence on transimpedance.
The aperture of the RF current monitoring probe is 46 mm.
We also sell the calibrator for the TBCP5, seen on this page.
Specifications
| Characterized frequency range | 10 Hz - 500 MHz |
| Transfer impedance | 11 dBΩ |
| Output impedance | 50 Ω |
| Max bias current (DC - 400 Hz) | 200 A |
| Max primary current (RF) | 2 A |
| Connector type | N female |
| Aperture diameter | 46 mm |
| Outside diameter | 124 mm |
| Height | 36 mm |
| Weight | 320 g |
