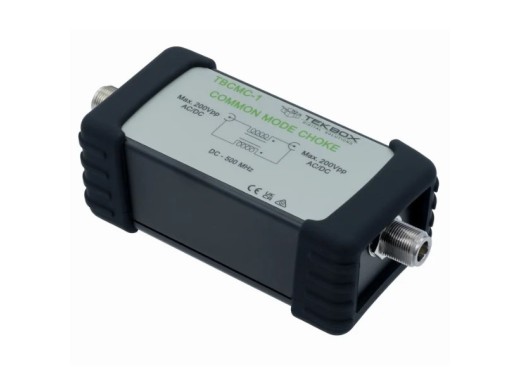

The Tekbox TBCMC-1 is an RF common mode choke made for general purposes. The recommended frequency range is between 10Hz and 500MHz. However, the choke can operate from 1Hz to 1GHz, but the performance decreases. It is primarily utilised to reduce ground loop currents in impedance measurement configurations that employ the shunt method. The TBCMC-1 choke is RoHS compliant and features a symmetric design.
Specifications
| Frequency range | 1 Hz - 1 GHz |
| Recommended frequency range | 10 Hz - 500 MHz |
| Power rating | 130 W up to 1 GHz |
| Voltage rating | 225 Vpp up to 1 GHz |
| Common mode saturation current | 500 mA |
| RF connectors | N-female, 50 Ω |
| Dimensions | 70 x 60 x 140 mm |
| Weight | 350 g |
