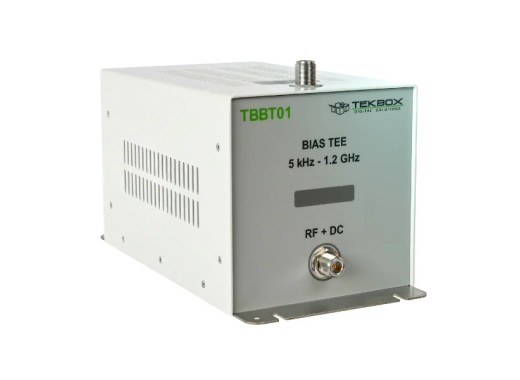

Tekbox TBBT01 high current bias-tee
Details
The Tekbox TBBT01 bias-tee can be used for measuring the saturation effects of power inductors and bias voltage effects on capacitors. In contrary to other bias-tees, the TBBT01 can measure both at a high bandwidth of 1.2GHz and a high current of 10A. Because of this, this high current bias-tee can be used for evaluating decoupling/bias inductors of RF power amplifiers or EMC filters. The TBBT01 can inject up to 10A current into a 50 Ω RF-path.
Specifications
| Frequency range | 5 kHz - 1.2 GHz |
| RF path insertion loss | < 1 dB; for 10 kHz - 1 GHz < 1.5 dB; for 5 kHz - 1.2 GHz |
| VSWR | 1 - 2 |
| Connectivity | N-female |
| Dimensions | 150 x 155 x 330 mm |
| Weight | 3 kg |
Accessories
The Tekbox TBBT01 bias-tee comes with:- 1x TBBT01
- 1x female terminal block
Downloads
| Tekbox TBBT01 manual |  (821.67 KB) | Download |
