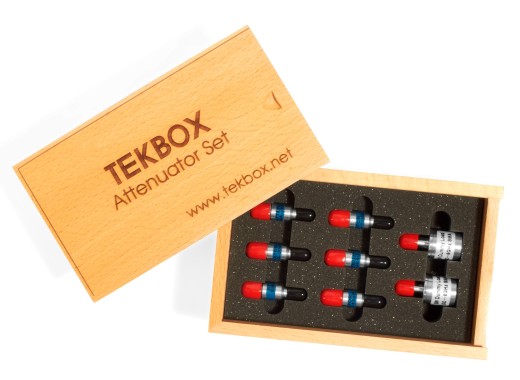

Tekbox TBAS2 SMA attenuator/termination set

The TBAS2 from Tekbox is an SMA RF attenuator/termination set containing four SMA attenuators and two SMA terminations. These attenuators and terminations have a maximum rated power of 1 W and are usable up to 6 GHz. On top of that, the attenuators are bidirectional and have a VSWR of < 1.3 and the terminations have a VSWR of < 1.2.

This attenuator/termination set includes:

• 3 dB RF attenuator, SMA-male to SMA-female, 6 GHz, 1 W
• 6 dB RF attenuator, SMA-male to SMA-female, 6 GHz, 1 W
• 10 dB RF attenuator, SMA-male to SMA-female, 6 GHz, 1 W
• 15 dB RF attenuator, SMA-male to SMA-female, 6 GHz, 1 W
• 20 dB RF attenuator, SMA-male to SMA-female, 6 GHz, 1 W
• 30 dB RF attenuator, SMA-male to SMA-female, 6 GHz, 1 W
• 50 Ω termination, SMA-male, 6 GHz, 1 W
• 50 Ω termination, SMA-male, 6 GHz, 1 W

Downloads

Tekbox TBAS2 manual

(219.37 KB)

Download
